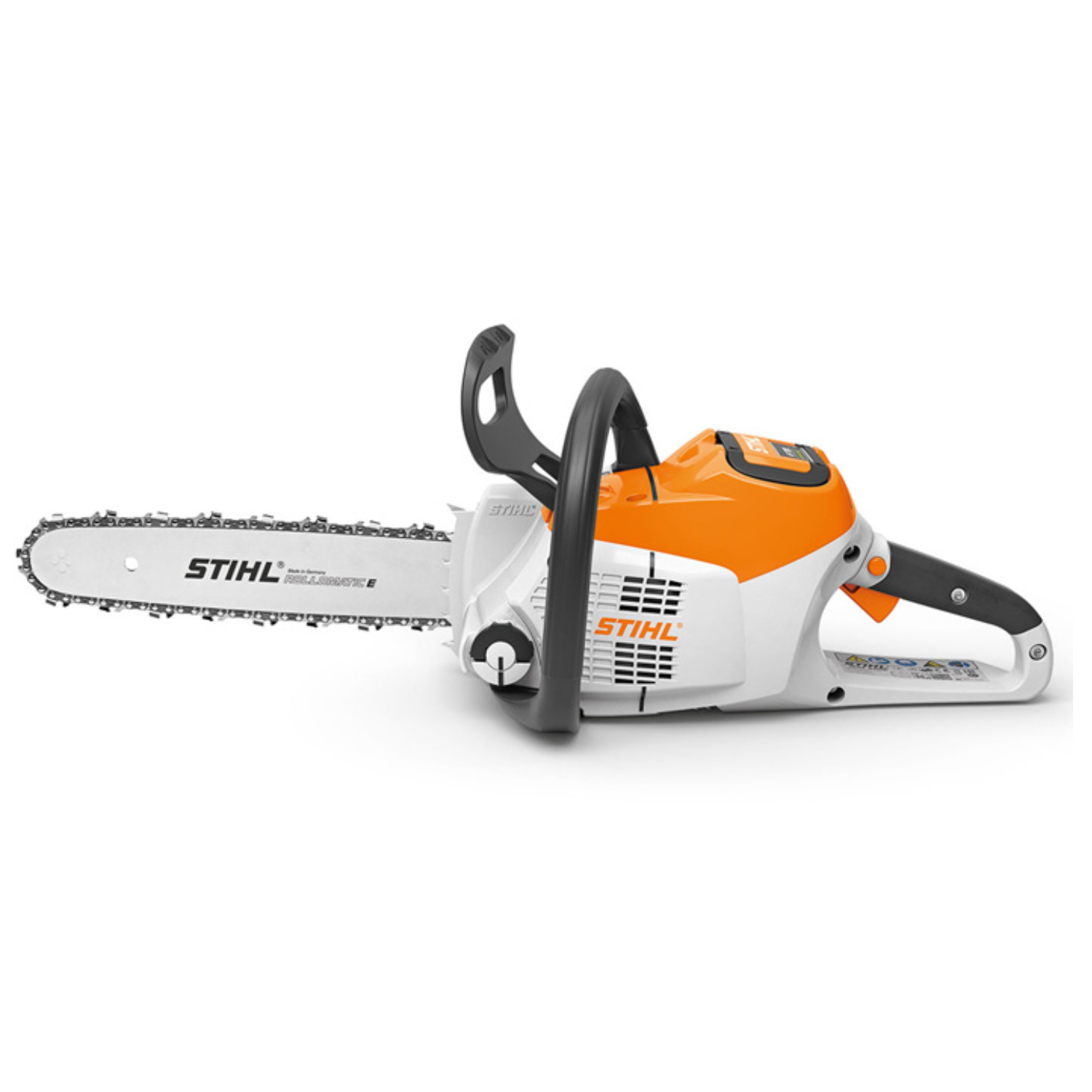

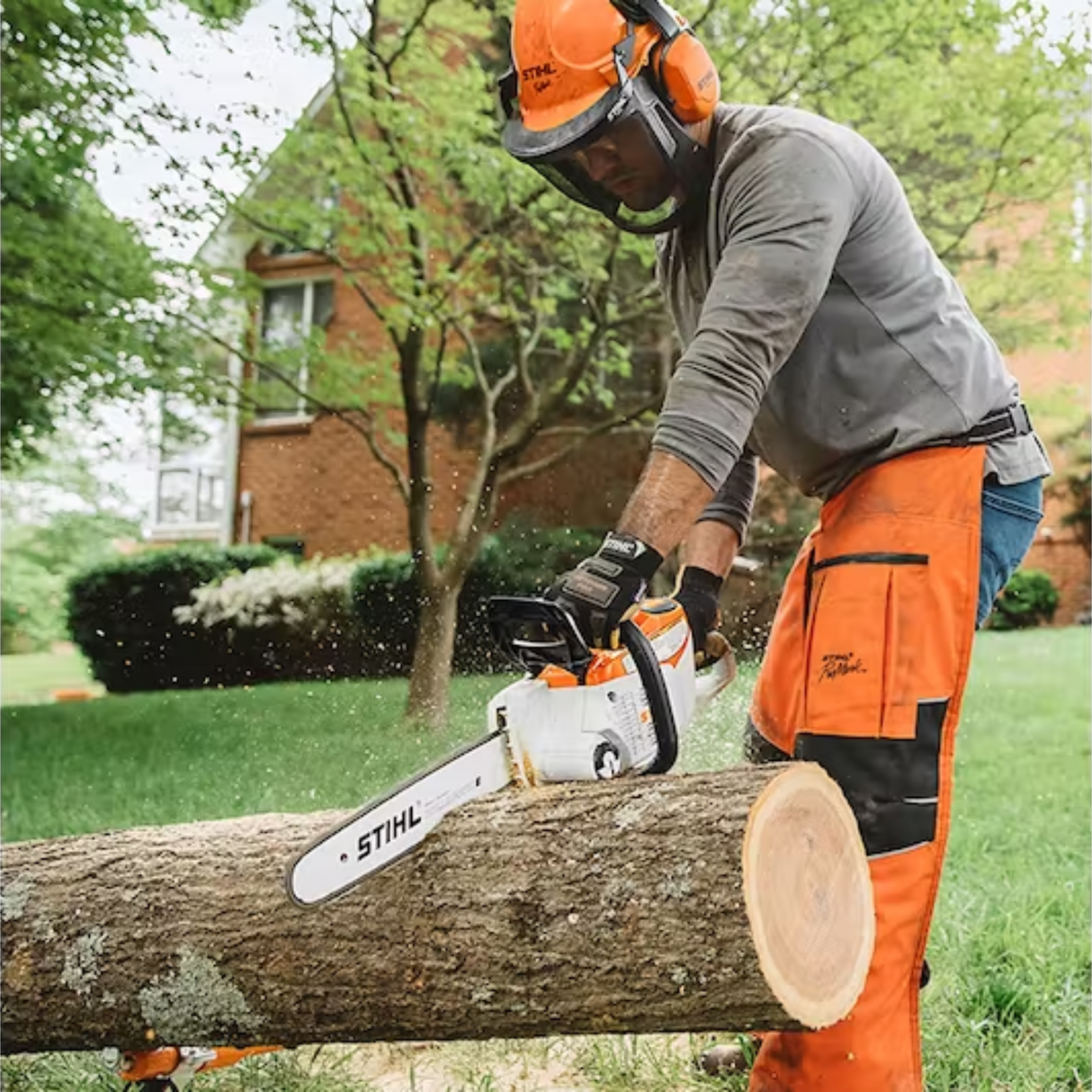

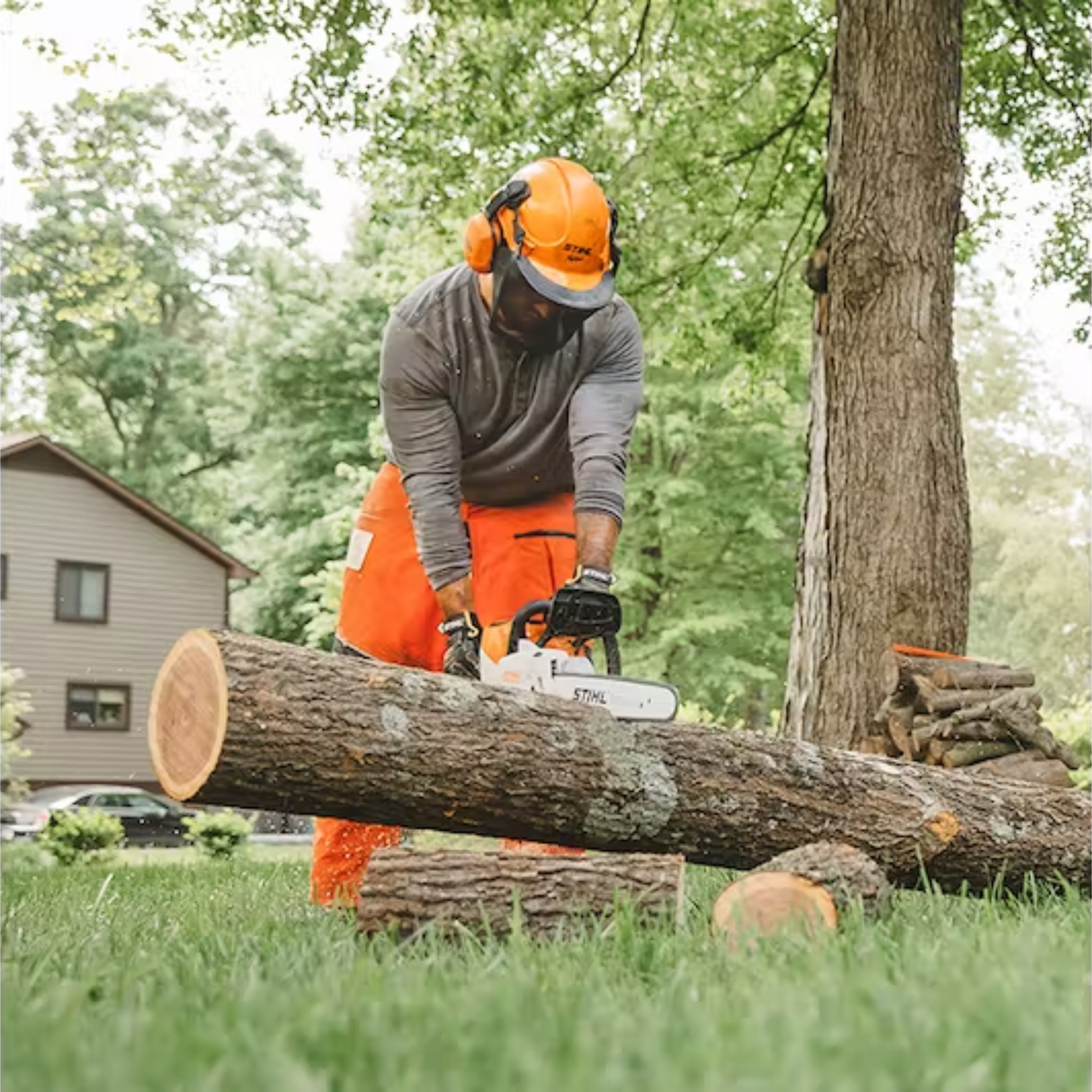

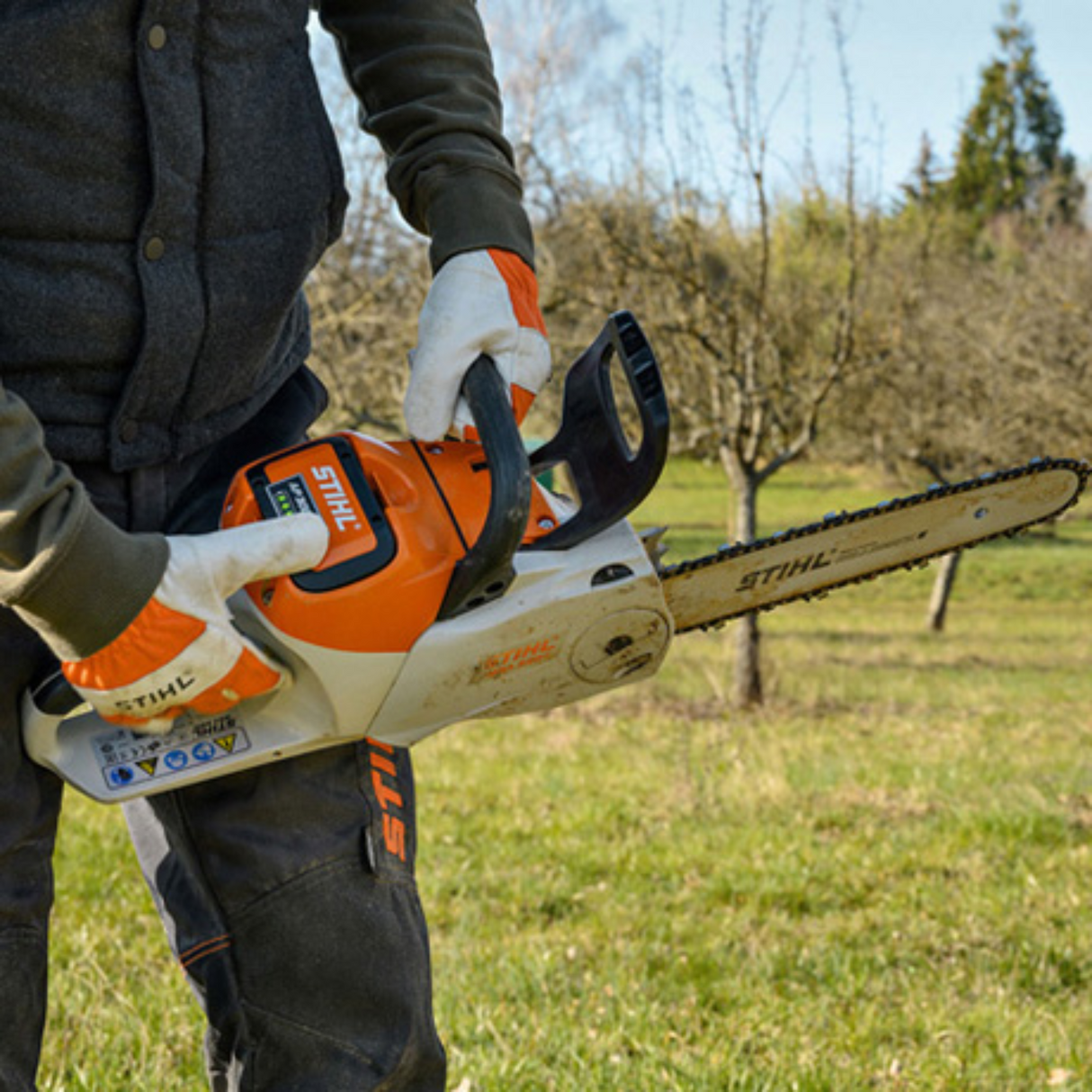

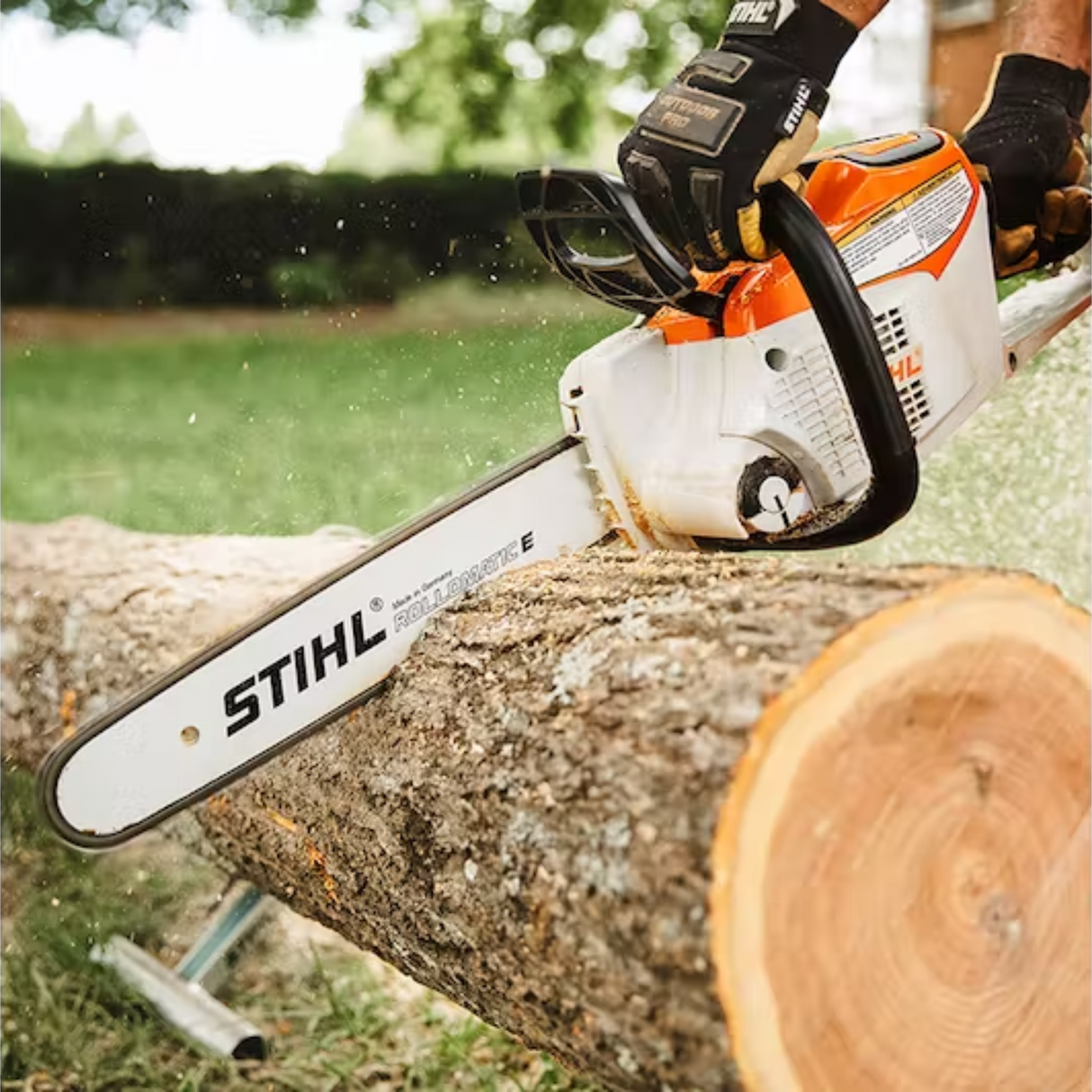

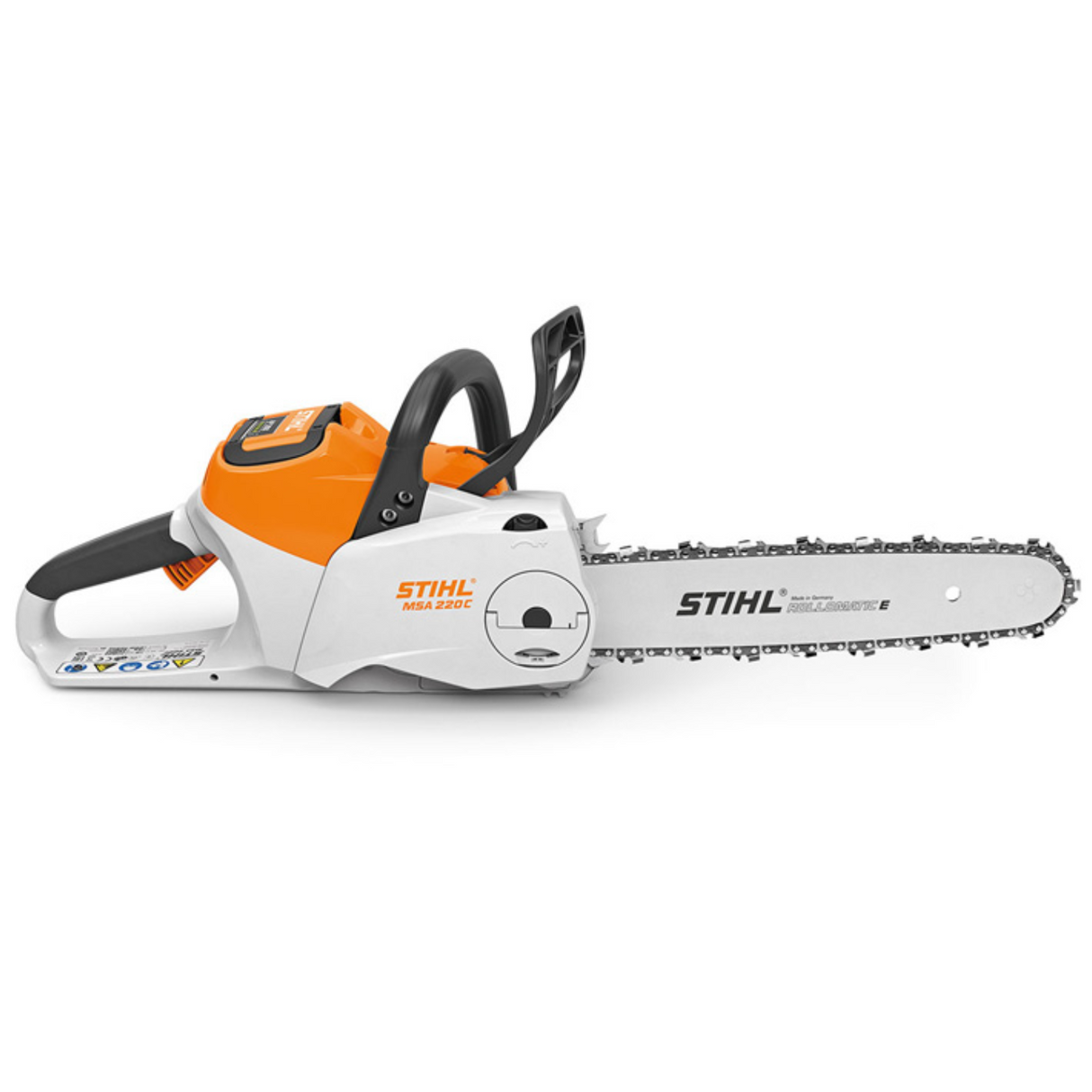

The most powerful battery-powered chainsaw in the STIHL lineup.

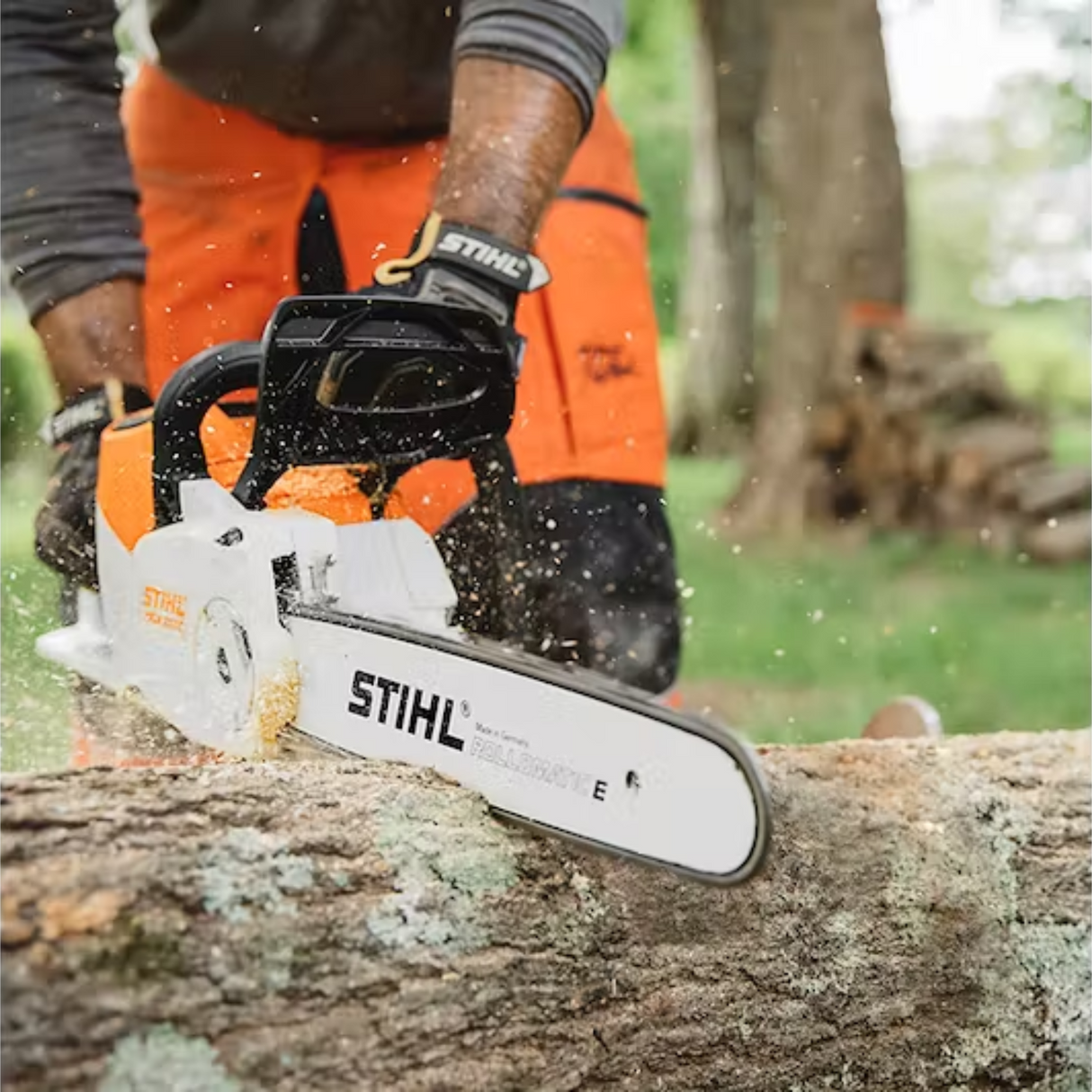

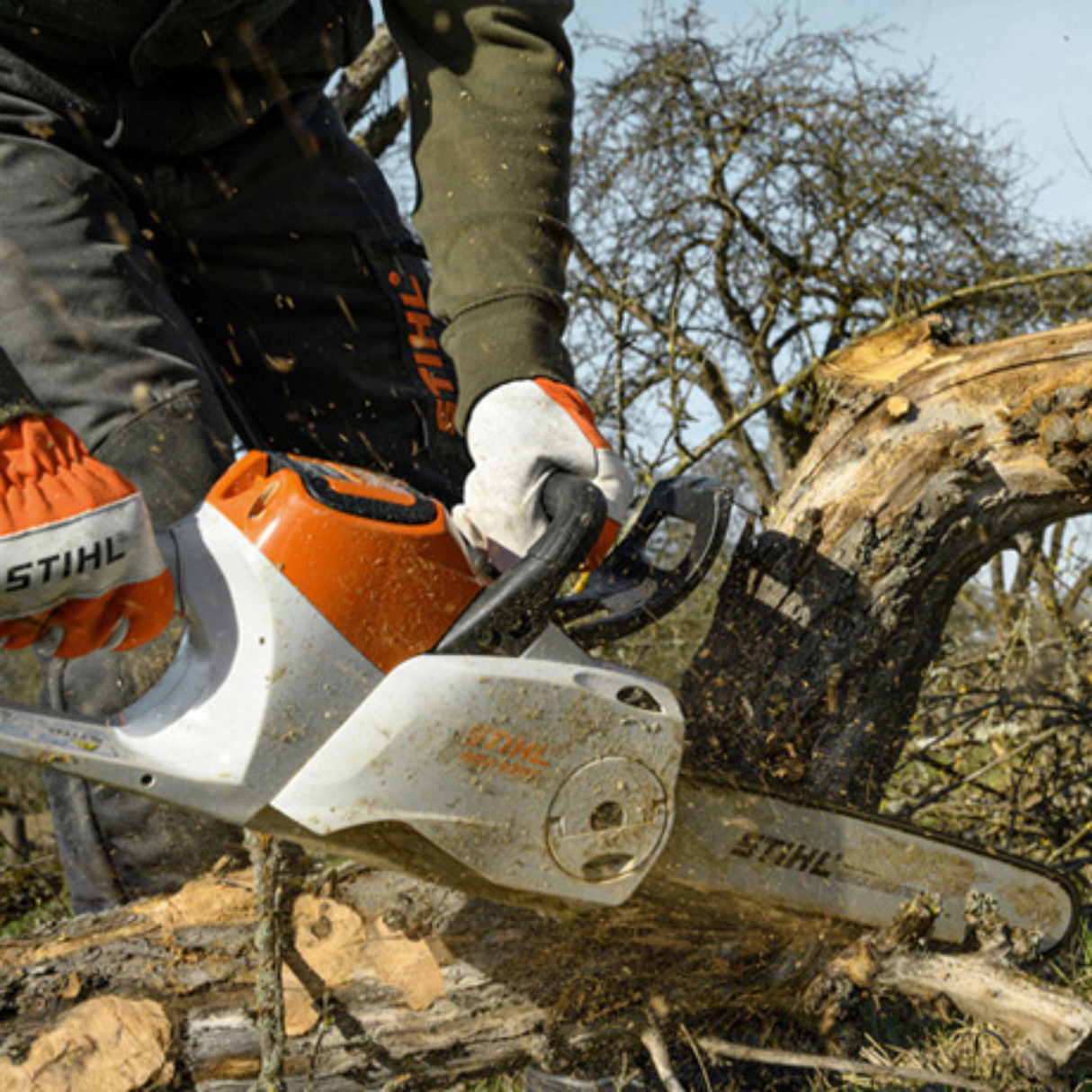

With reliable performance delivered from STIHL battery power, the MSA 220 C-B is the most powerful battery-powered chainsaw in the STIHL lineup. Capable of felling and limbing, this saw is also the first STIHL battery chainsaw with a 16" bar. Its durable construction and reliable performance make it a powerful addition to the professional arsenal.

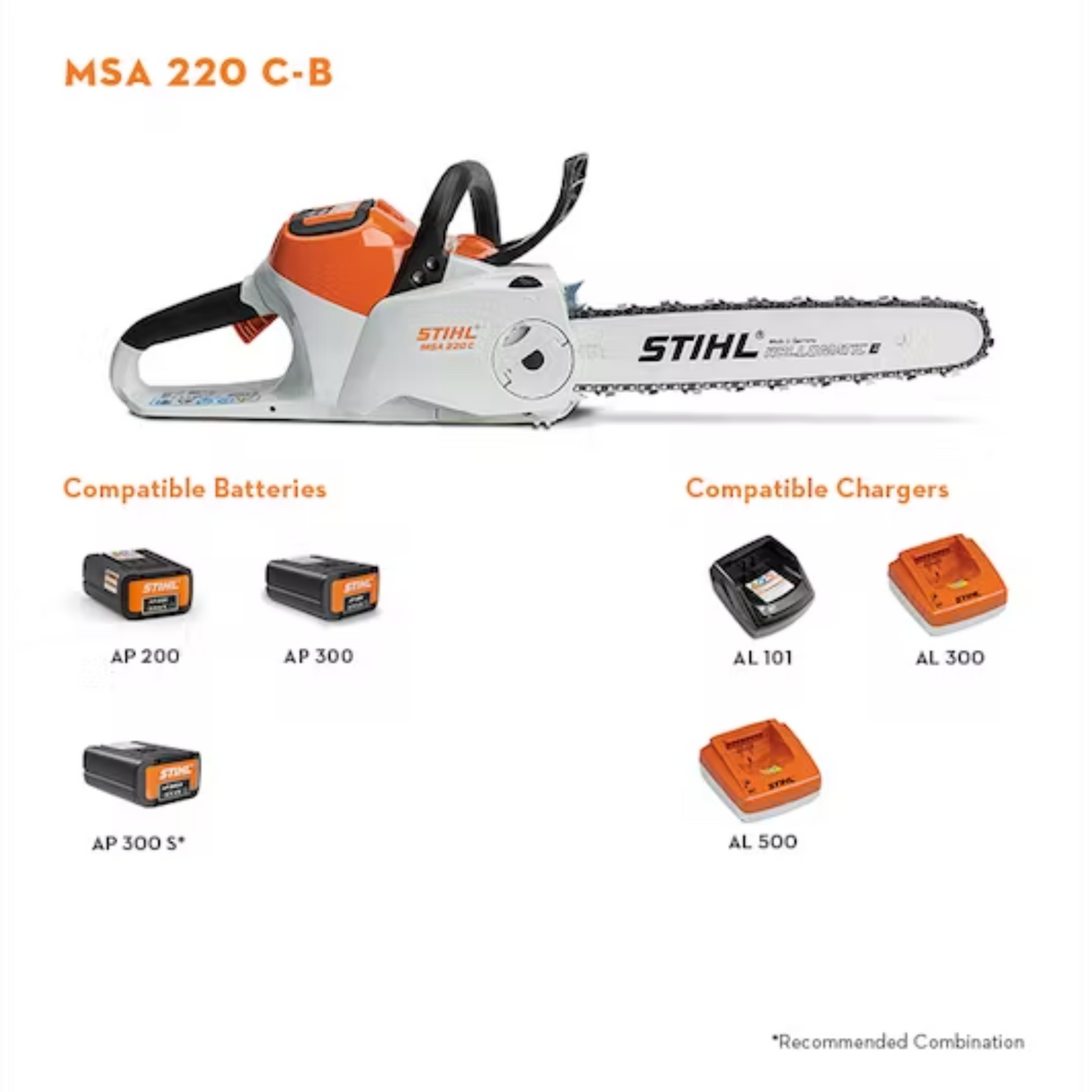

Note: Batteries and chargers can be purchased separately or as a combined set with tool.
Features
STIHL Quickstop®
STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
STIHL Electric Motor
Lightweight and compact, STIHL electric motors require minimal maintenance and feature low noise levels and reduced vibration.
Fastest chain speed within the STIHL battery range

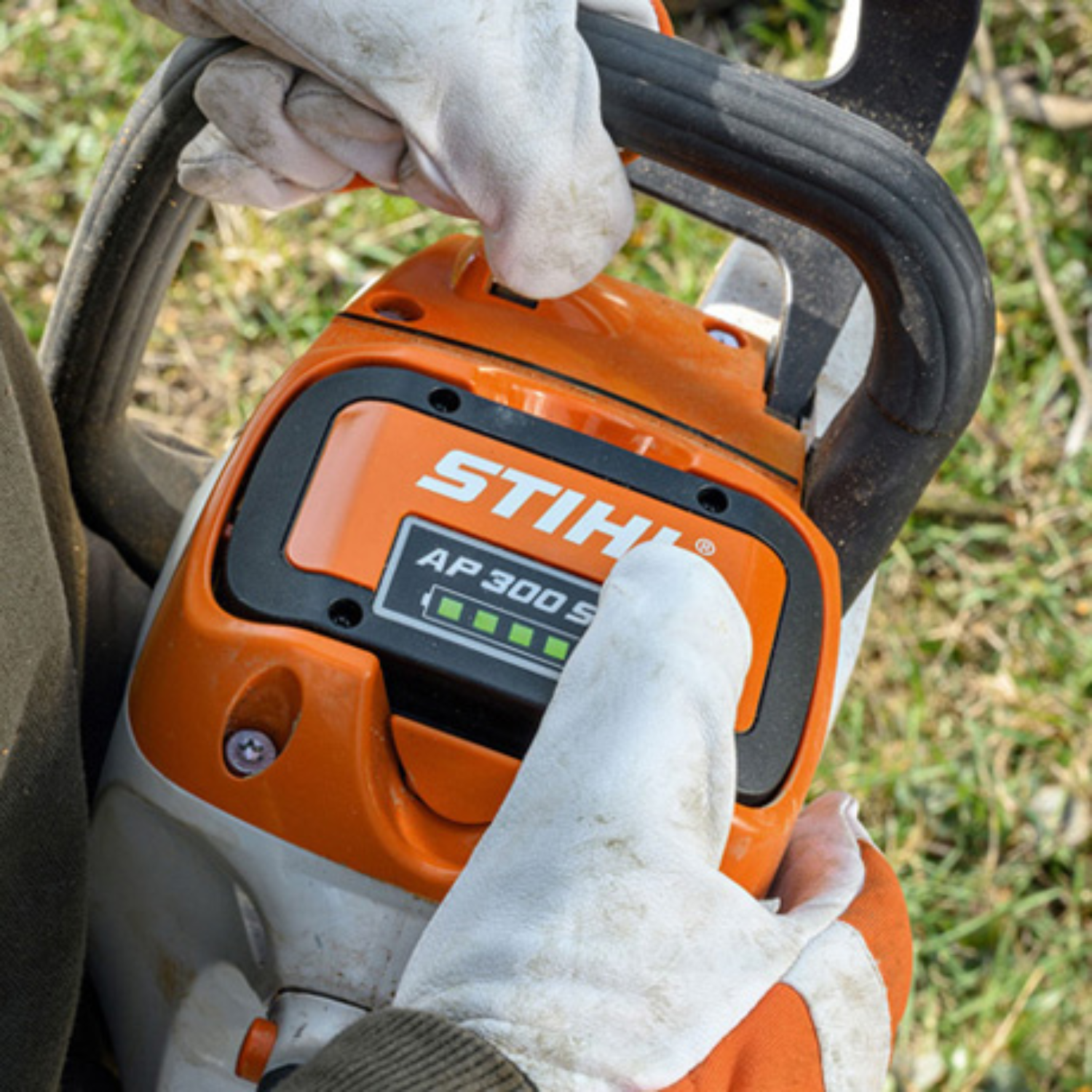

With full performance delivered by the AP 300 S battery, the MSA 220 C-B is the most powerful battery-powered chainsaw in the STIHL lineup.
Raised and Printed Felling Stripe
The raised and printed felling stripe allows for precise aiming of felling direction.
Reduced-Emission Engine Technology - Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Rubberized Soft Touch Handle
Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
Ematic™ Lubrication System
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
Coast-down Brake
A controlled braking device (Q) to stop the rotating chain when the trigger is released.
Quick Chain Adjuster (QCA) (B)
The Quick Chain Adjuster (QCA) (B) allows the user to adjust the tension of the chain without the use of tools. This allows for easy chain adjustment.
Available in either a 14-16” guide bar combination
The MSA 220 C-B offers professionals options as it is available with either a 14" or 16" guide bar combination.
Comes standard with the 3/8” STIHL PICCO™ super chain
The STIHL PICCO™ Super 3 is a low-profile, low-kickback saw chain. Its razor-edged, square-cornered cutter shape ensures minimum chain friction for a smooth clean cut.

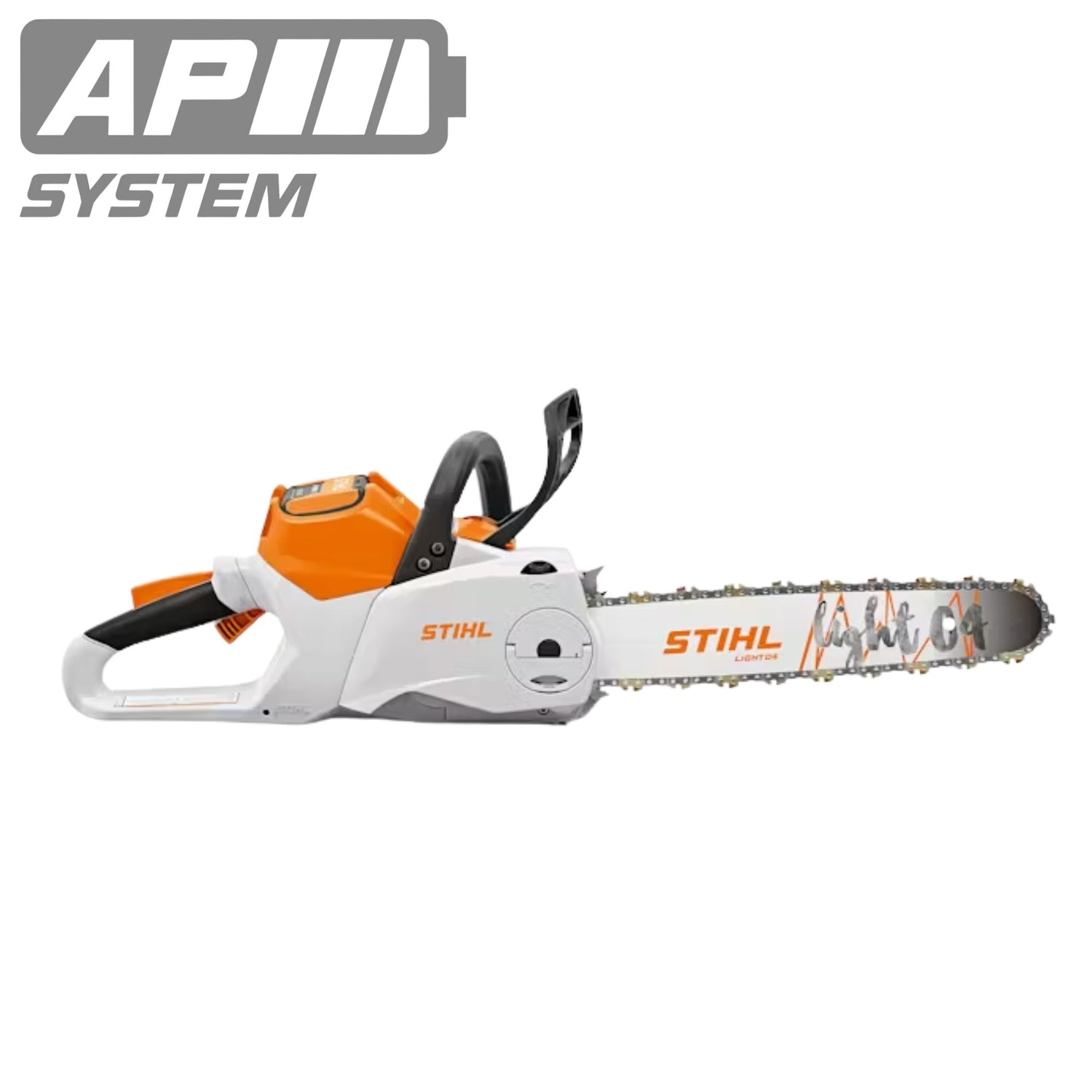

One battery, multiple tools
STIHL offers a wide array of battery-powered, professional-grade tools designed to take on tough tasks with batteries that can be used across products in the same series.
Specifications
| POWER SOURCE |
Battery |
| GUIDE BAR LENGTH (Recommended) |
16 in. |
| OILOMATIC® CHAIN |
3/8" PS3 |
| CHAIN OIL CAPACITY |
7.1 oz. |
| BATTERY SYSTEM |
AP Series |
| RUN TIME (w/ AP 300 S) Up to |
37 min. |
Note: STIHL recommends #3616 (63 PS3 55) OILOMATIC® saw chain and 16” 3005 000 4813 STIHL ROLLOMATIC® E guide bar combination. Chainsaw weights include recommended bar and chain combination. Compatible guide bar ranges: 14" to 16". The battery working time specifications for each battery charge are estimates and may vary depending on how the tool is used and what is being cut.
|
