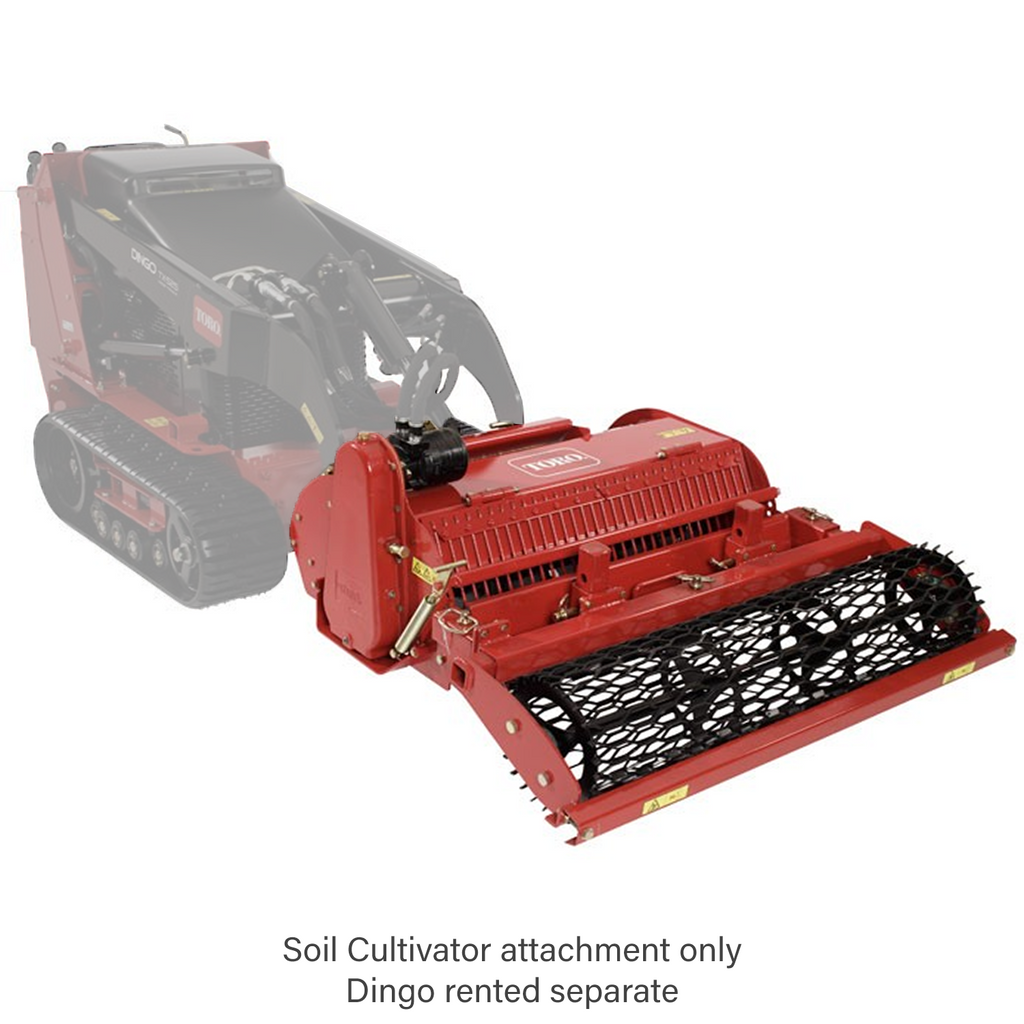

The soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertilizer. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.
- One-pass prep for seed or sod
- High filtering grate
- Offset wire mesh finish roller
- Breaks up soil down to 5.5" deep
Offset Wire Mesh Rear Roller
Eliminates ridges between machine passes, and ensures for a uniform seed bed. Creates dimpled surface for maximum seed germination and root penetration.
Deep Soil Cultivation
Tiller cultivates soil up to 5.5" (14 cm) deep for maximum root penetration and healthy turf. Contractor can choose optimal depth for seed bed preparation.
High Filtering Grate
The grate permits only loose soil to pass through. Rocks, sticks, clods and debris are buried below the fresh tilled soil.
Specifications
| Blade Adjustment |
Mechanical adjustment |
| Construction |
Fabricated, welded steel frame |
| Depth Control |
Mechanical adjustment |
| Height (cm) |
53 |
| Height (inches) |
21 |
| Hydraulic Flow |
7-14 gpm (26.5-53 lpm) |
| Length (cm) |
130 |
| Length (inches) |
51 |
| Mounting Frame |
Dingo® quick-attach mount plate, fabricated, welded base |
| Number of Blades |
20 "V" non-panning blades |
| Quick Couplers |
Dripless, flush face quick couplers |
| Rated Pressure |
3000 psi (206.7 bar) |
| Roller Adjustment |
Mechanical adjustment |
| Rotar - Outside Diameter (cm) |
28.6 |
| Rotar - Outside Diameter (inches) |
11.25 |
| Weight (kg) |
250 |
| Weight (lbs) |
550 |
| Width (cm) |
130 |
| Width (inches) |
51 |
| Working Depth (cm) |
14 |
| Working Depth (inches) |
5.5 |
| Working Width (cm) |
91.4 |
| Working Width (inches) |
36 |
|
