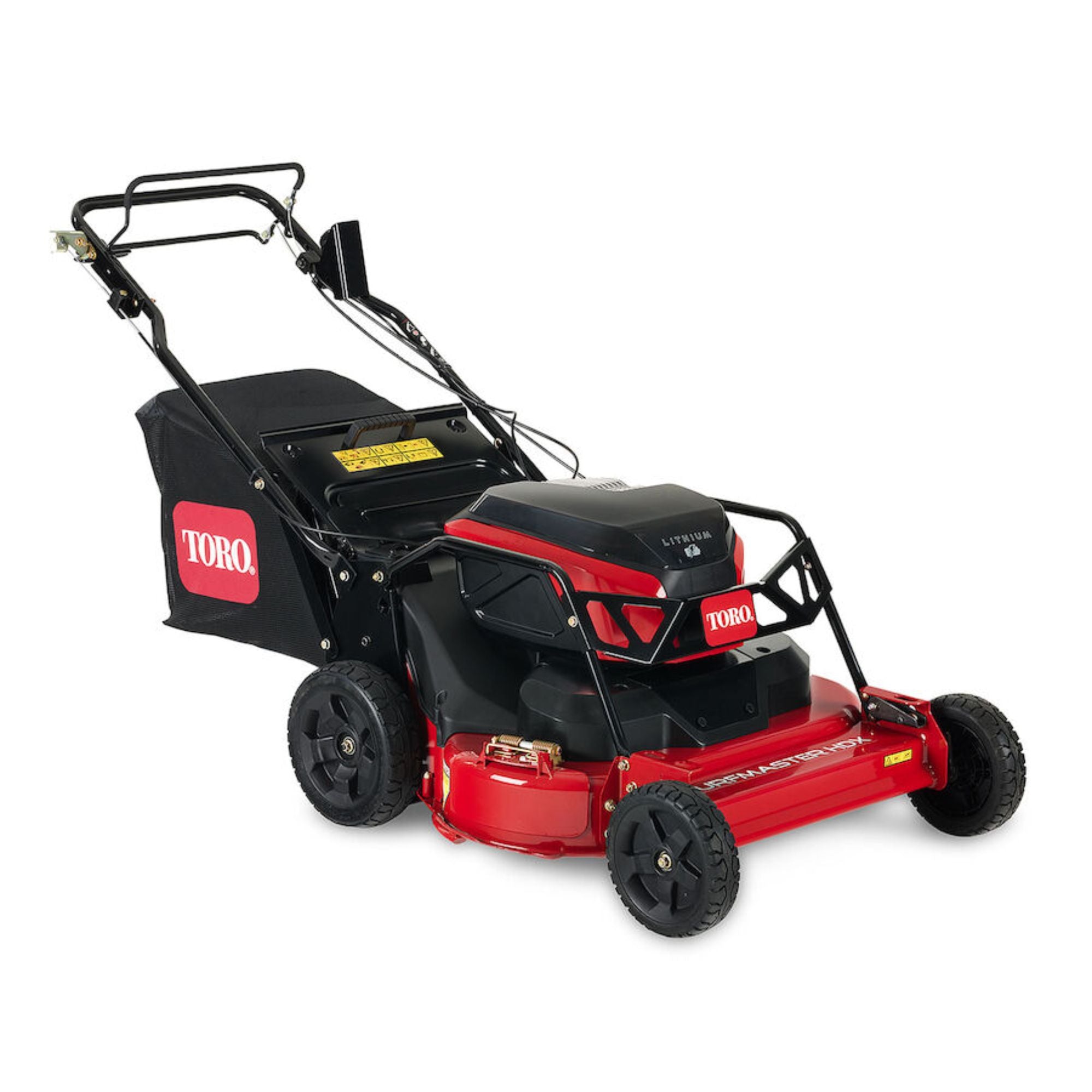

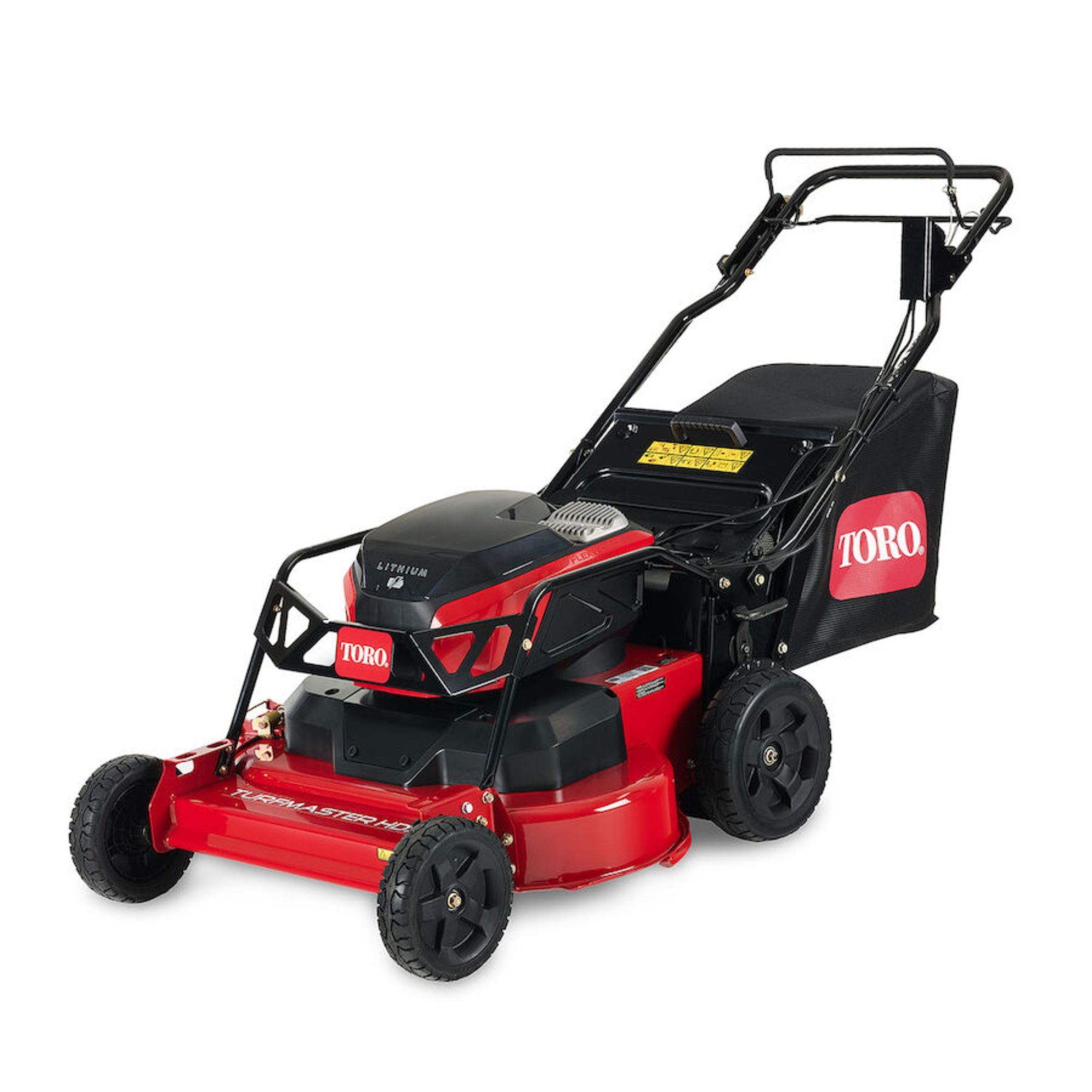

The same proven TurfMaster platform you know meets the quiet, commercial-grade battery power of Toro’s Revolution Series. With the 30 in-wide deck, you’ll cover more ground in fewer passes than with a smaller model, without losing the simplified and easy-to-learn operation of a walk-behind mower. Every component from top to bottom is made for heavy use in rough conditions and designed to give you the professional-quality cut your customers demand for even the most complex mowing jobs. With quiet operation, and without costs and downtime of engine maintenance, you’ll experience increased uptime and extended operating hours. As a part of the Flex-Force Power System, the included 60V batteries and chargers are compatible with any and all 60V Max* Flex-Force tools to power you and your crew year-round.
- With quiet, 60V battery power, say goodbye to engine exhaust emissions and engine maintenance.
- Use any 60V Max* Flex-Force battery to power any and all of the 75+ tools in the all-season lineup.

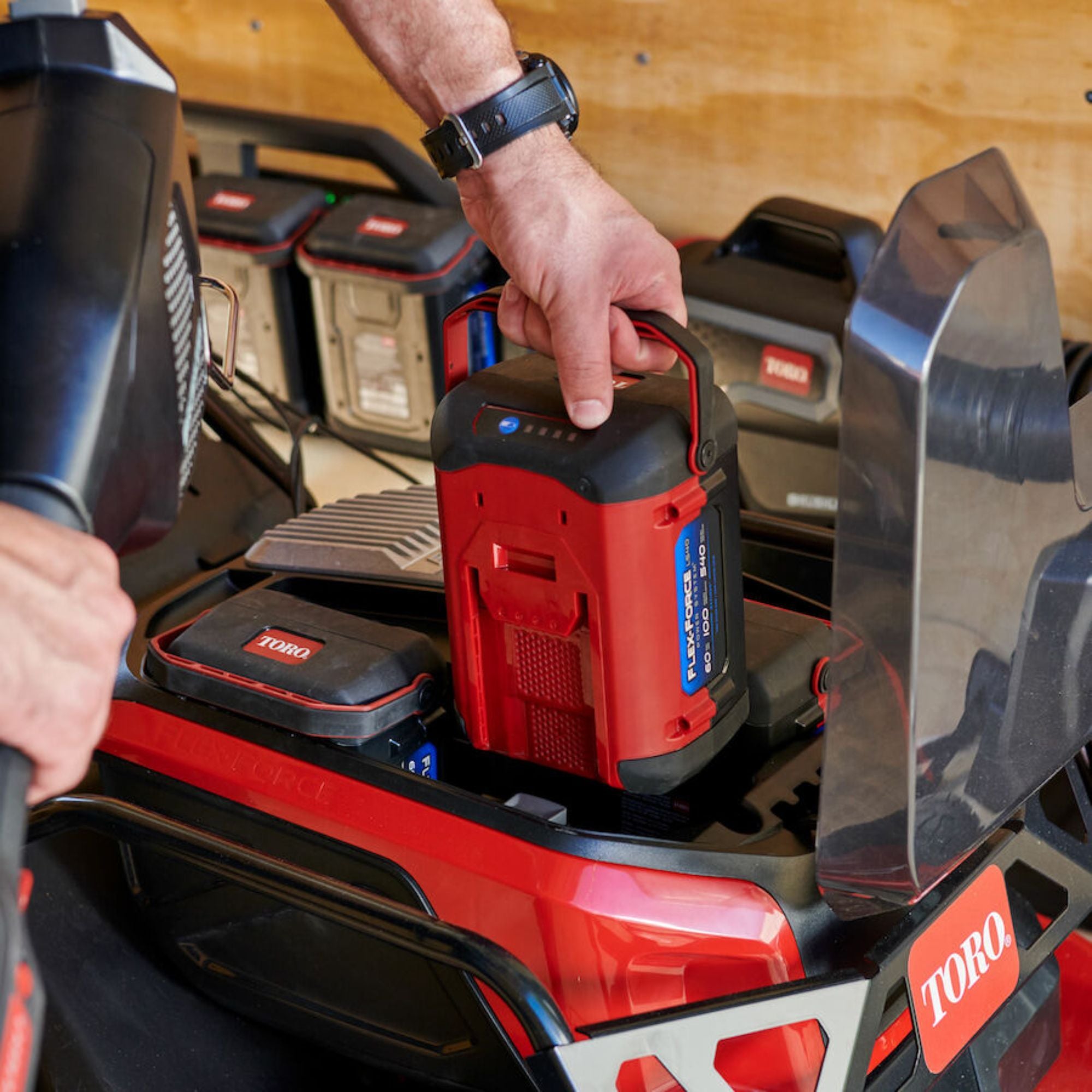

- Up to 80 minutes of runtime with included 3 60V Max* 10.0Ah batteries.
- Enjoy years of reliable use with heavy-duty components to protect the machine from damage.
- Tested by an independent testing laboratory to ensure industry and product safety standards are met.
- Boost productivity with the 30in deck with 3-in-1 design for mulching, bagging and side discharge.
- Easily adjust deck height with 2-point height of cut adjustment.
- Get the “just bagged” appearance without the hassle of clipping collection with the mulching system.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Specifications
Battery Charge Time (min) |
112 |
Battery Power |
60V Max |
Battery Product Type |
Full Tool (battery included) |
Blade Design |
0.135 in. / 0.343 cm |
Blade Engagement |
Zone Start |
Box Dimensions |
41.75 in x 33 in x 26 in / 106.0 cm x 83.8 cm x 66.0 cm |
Deck Design |
Steel Deck, Cast Aluminum Frame |
Deck Material |
13 Gauge Steel Deck / Cast Aluminum Frame |
Deck Size |
30 in / 76 cm |
Drive System |
Rear Wheel Drive |
Drive Type |
Rear-Wheel Drive |
Engine |
Brushless DC Motor |
Forward Ground/Transport Speed |
Up to 4.2 mph / 6.7 kph |
Forward Mowing Speed |
Up to 4.2 mph / 6.7 kph |
Fuel Type |
Battery |
Height of Cut |
1.5 - 5.0 in. / 3.8 - 12.7 cm |
Height of Cut Adjustment |
2-point |
Motor Type |
Brushless DC |
Mulching |
3-in-1 ready |
Number of Batteries Included |
3 |
Number of Battery Ports |
3 |
Number of Blades |
2 |
Number of Chargers Included |
1 |
Product Type |
Walk Behind Mowers |
Product Use |
Commercial |
Self Propel System |
Variable Speed |
Start Type |
Push Button Start |
Tires |
Front: 9 in. x 2.5 in. (22.8 cm x 6.3 cm); Rear: 10.5 in. x 3 in. (26.7 cm x 7.6 cm) |
Transmission |
MV-702 Single Speed, Single Reduction Gear Box with Bevel Gears, Cone Clutch Design, Die Cast Alum Housing, Splash Oil Lubricated |
Voltage |
60V |
Weight |
195 lbs / 88.5 kg |
Disclaimer
*Battery manufacturer rating = 60V maximum & 54V typical usage. Actual voltage varies with load.
† Based on controlled laboratory testing of product. Run time varies with load. Charge time may vary based on environmental conditions. Charge time based on temperate conditions using rapid charger.
^Lithium Ion batteries equal to/greater than 6 amp hours (ah) are hazardous material and as such non-refundable/non-returnable.
