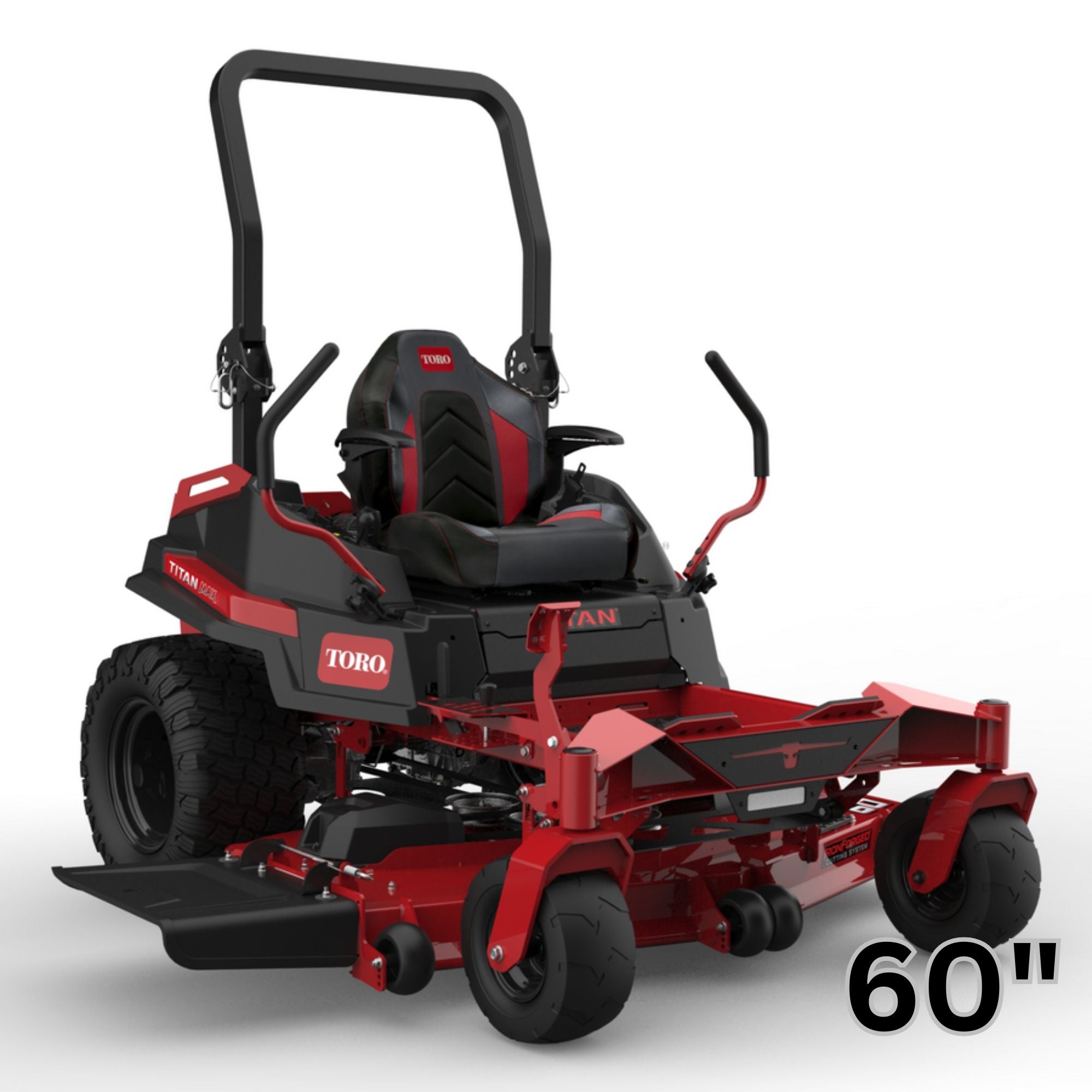

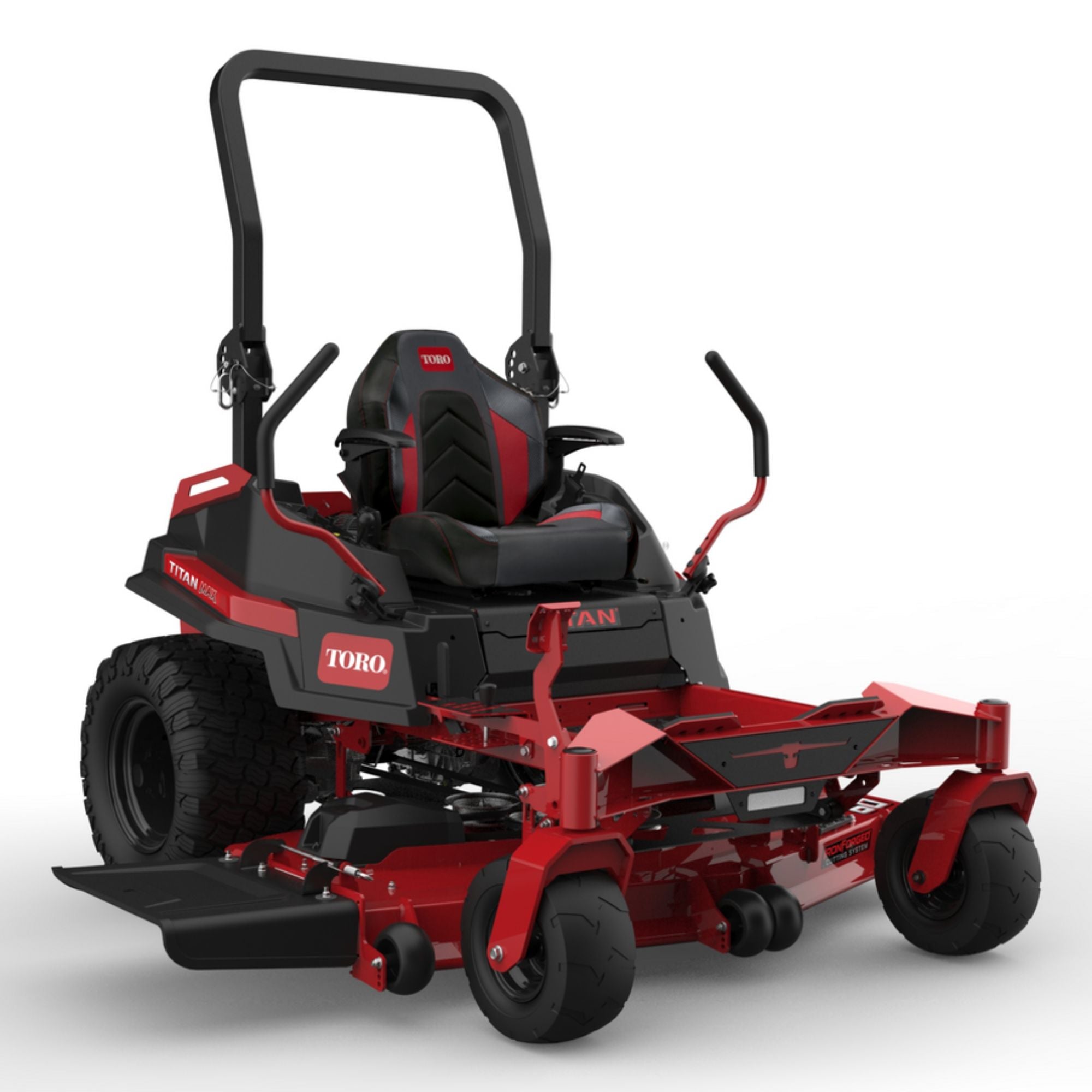

This isn’t just a mower. It’s the ultimate tool for ruling your turf. We’ve taken all the raw power and unyielding strength that makes the TITAN legendary and cranked it up to the MAX. Armed with even more commercial-grade force, from the upgraded transmission to the deck struts, this beefed-up beast is built to obliterate any challenge your acreage throws at it.
- Massive 23-inch rear tires feature aggressive treads meant to bring Mother Nature to her knees—all without tearing up your turf.
- Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.
- Power forward, knowing you've got visibility in any environment with the integrated LED task light.
- Built-in arm rests keep you steady and in control.
- Built with an upgraded transmission for relentless performance.
- Upgraded compression springs amp up suspension.
- No refills, just relentless power with a 7-gallon fuel capacity.
- Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
Specifications
Anti Scalp Wheels |
4 Standard |
Armrests |
Standard |
Blade Tip Speed |
18,200 ft/min / 5,547 m.min |
Box Dimensions |
91 in. x 70.25 in. x 52.25 in. / 231.1 cm x 178.4 cm x 132.7 cm |
CARB Compliant |
Not CARB Compliant |
Caster Tires |
13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic |
Controls |
Dual Wrap Around Levers |
Cup Holder |
Standard |
Deck Design |
10-Gauge steel IronForged® with fully weld grade 50 Steel bumper |
Deck Material |
10 Gauge High-Strength Steel |
Deck Size |
60 in / 152 cm |
Discharge Chute |
Rubber |
Drive Tires |
23 in. x 12 in. - 12 in. (58.4 cm x 30.5 cm - 30.5 cm) |
Drive Type |
Rear-Wheel Drive |
Engine |
26 hp* Kohler 747 cc |
Engine Brand |
Kohler |
Engine Displacement (cc) |
747 cc |
Engine Horsepower |
26.0 hp |
Foot Operated Height of Cut |
Standard |
Forward Ground/Transport Speed |
Up to 9.0 mph / 14.4 kph |
Forward Mowing Speed |
Up to 9.0 mph / 14.4 kph |
Front Bumper |
Bull-Nose |
Fuel Capacity |
7 gal. / 26.5 L / 28 Qt. |
Fuel Type |
Gasoline |
Height of Cut |
1.5 - 5.0 in. / 3.8 - 12.7 cm |
Hitch Bracket |
Standard |
Number of Blades |
3 |
Product Features |
Cup Holder, Electric Start, Hitch Bracket |
Product Type |
TITAN Max |
Product Use |
Residential |
Recommended Oil Type |
10W - 30 with filter change |
Roll-Over Protection (ROPS) |
Standard |
Seat |
20" Gaming Style |
Spindle Housing |
8 in / 20.3 cm Cast Aluminum |
Start Type |
Electric |
Steering Controls |
Dual Wrap Around Levers |
Steering Dampeners |
Standard Dampers |
Terrain Type |
Flat with Obstacles |
Tires |
13 in. x 6.5 in. ( 33.3 cm x 16.5 cm) Front, 22 in. x 11 in. (55.8 cm x 27.9 cm) Rear |
Transmission |
Dual Hydrostatic |
Weight |
839 lbs / 380.6 kg |
Yard Size |
Up to 7 acres |
