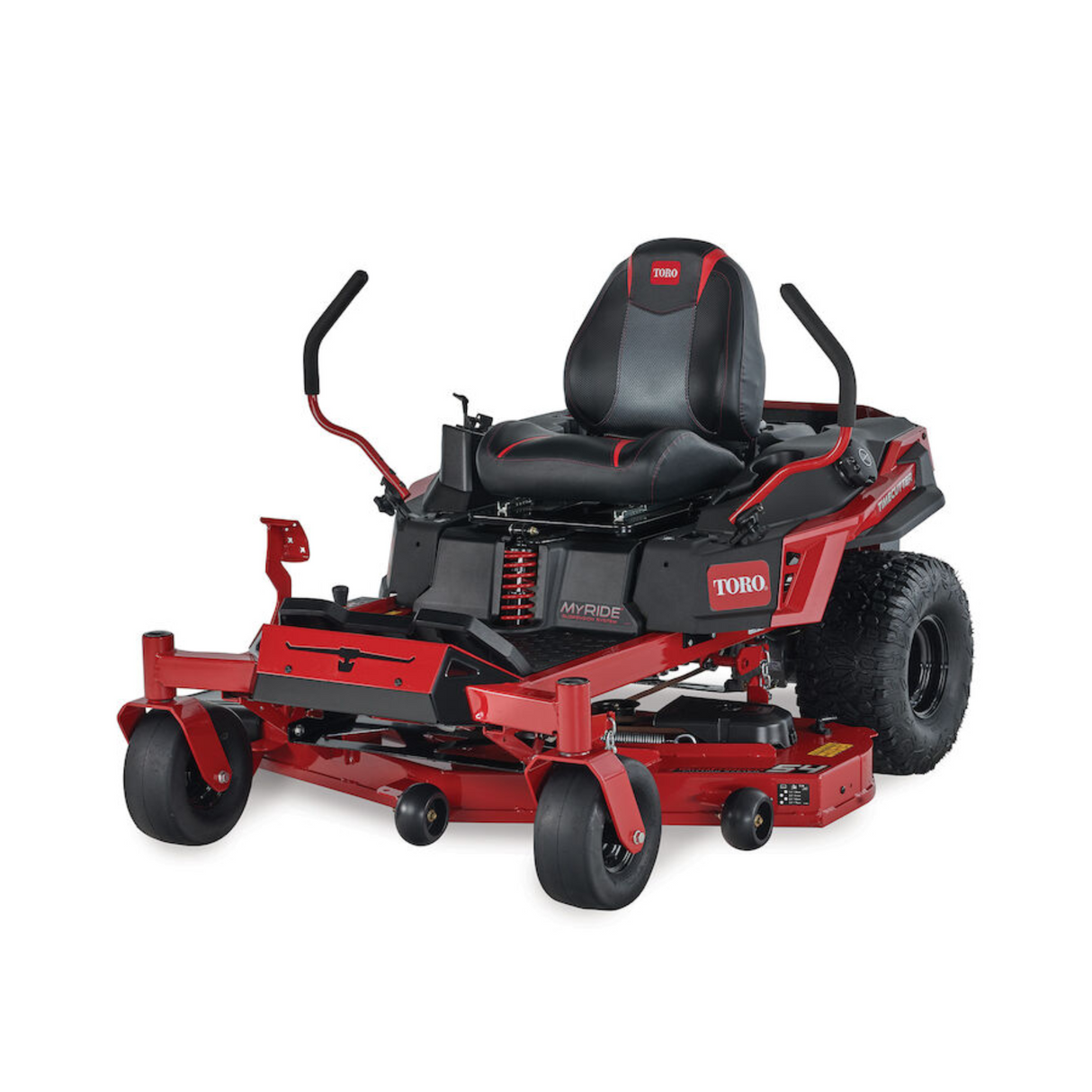

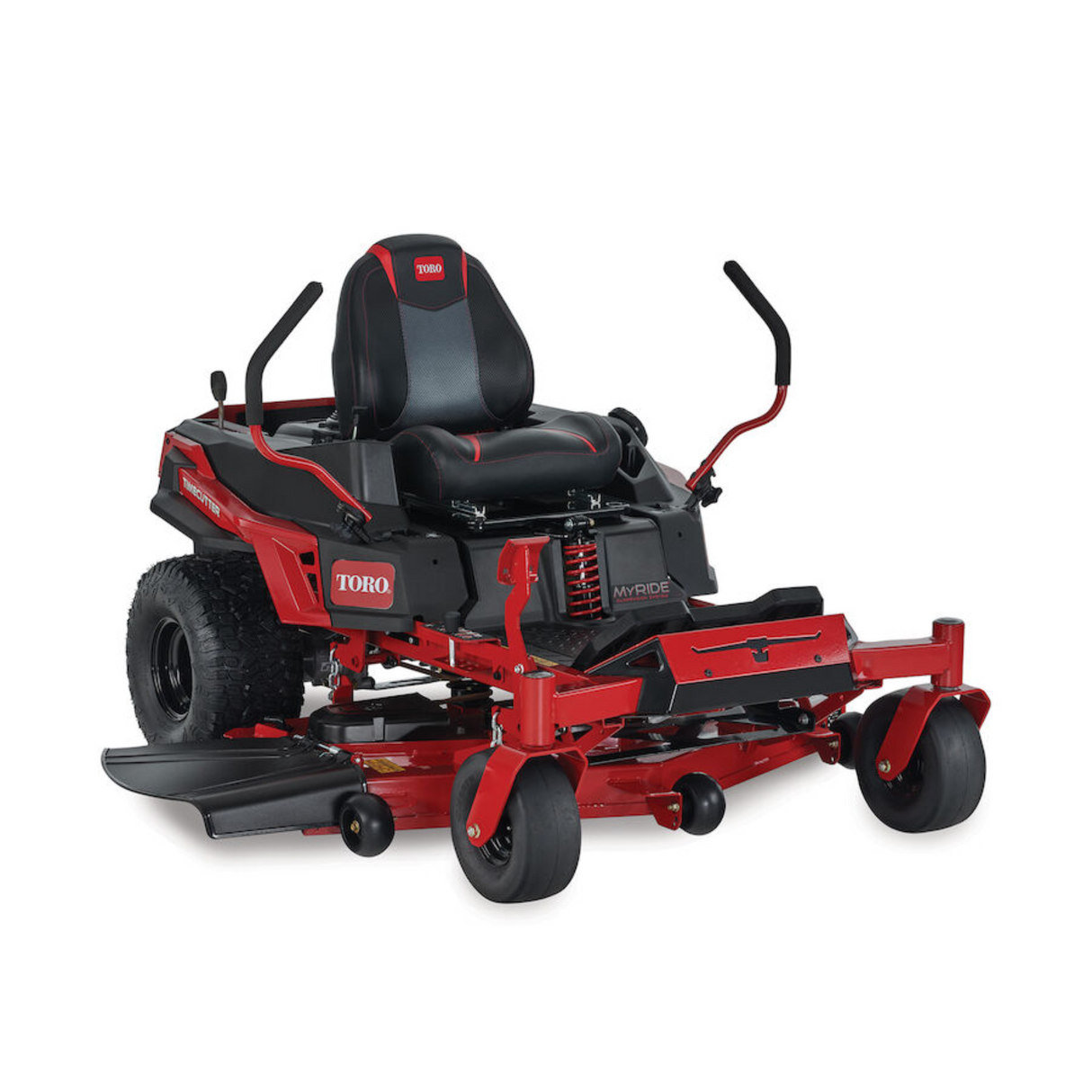

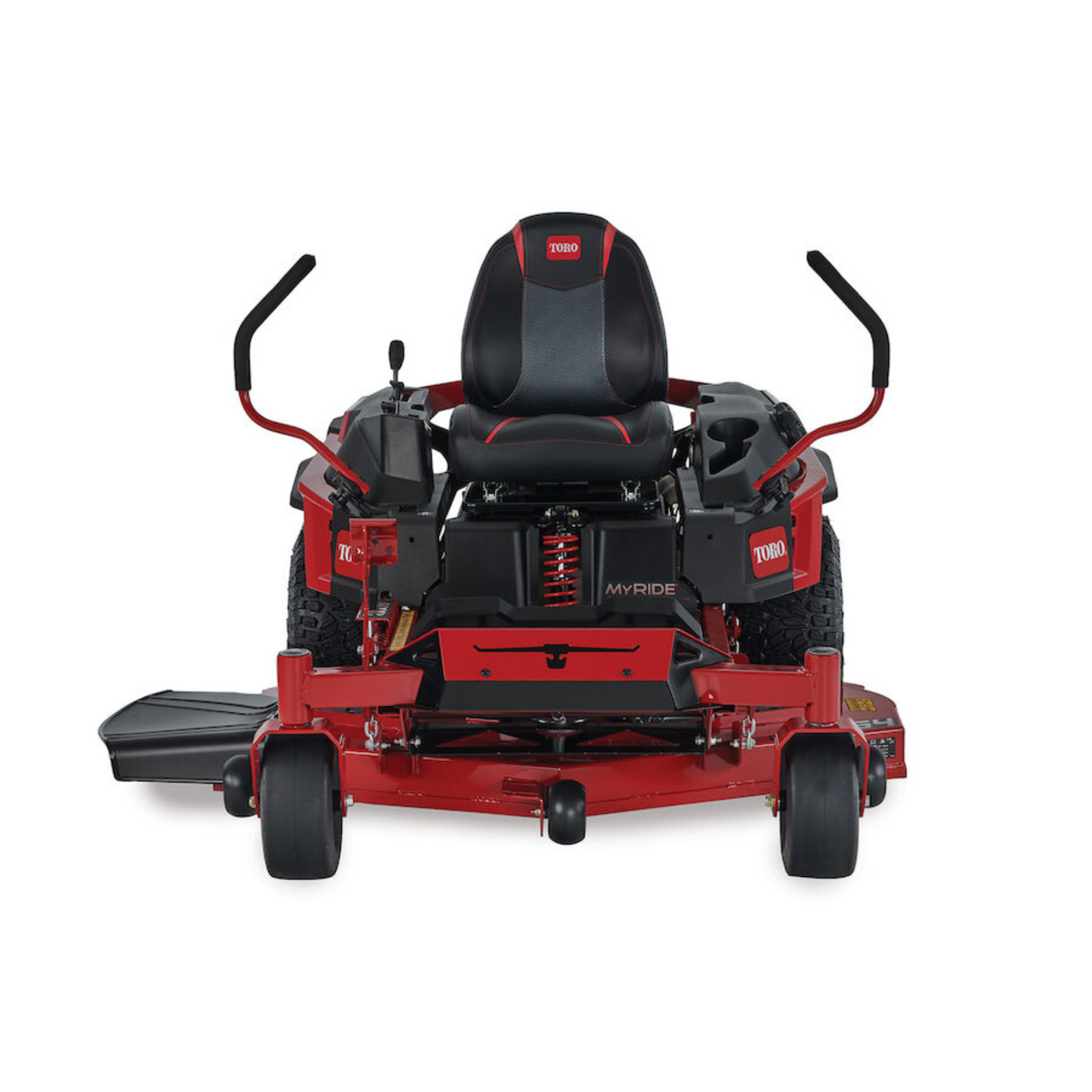

When it comes to your yard, second best just won't cut it. That's why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you're done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.
- Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
- Over 100 years of Pro DNA course through the veins of every mower we build.
- Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
- The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
- Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
- Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
- The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
- Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
Specifications
Air Filter |
Standard Kawasaki Air Cleaner |
Anti Scalp Wheels |
3 Standard |
Armrests |
Optional |
Bagger Capacity |
4.9 bushels |
Blade Tip Speed |
17,700 ft/min / 5,395 m/min |
CARB Compliant |
Not CARB Compliant |
Carrier Frame |
3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
Caster Tires |
12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic |
Clutch |
Electromagnetic |
Comfort Platform |
MyRIDE® Suspension System |
Cooling System |
Air Cooled |
Crankshaft |
1" (25 mm) w/Steel Protector |
Cup Holder |
Standard |
Cutter System |
Steel Cutting Blade |
Cutting Width |
54 in / 137 cm |
Deck Design |
10-Gauge steel IrongForged®
|
Deck Material |
10 Gauge Steel |
Discharge Chute |
Side |
Drive System |
Hydrostatic |
Drive Tires |
20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm) |
Drive Type |
Rear-Wheel Drive |
Engine |
23 hp Kawasaki FR691V 726cc |
Engine Brand |
Kawasaki |
Engine Displacement (cc) |
726 cc |
Engine Horsepower |
23.0 hp |
Engine Power (kW) |
17.2 kW |
Foot Operated Height of Cut |
Standard |
Forward Ground/Transport Speed |
Up to 7.0 mph / 11.2 kph |
Forward Mowing Speed |
Up to 7.0 mph / 11.2 kph |
Frame |
3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
Fuel Capacity |
5 gal. / 18.9 L / 20 Qt. |
Fuel Type |
Gasoline |
Greasable Bearings |
Yes |
Height of Cut |
1.0 - 5.0 in. / 2.5 - 12.7 cm |
Hitch Bracket |
Standard |
Hour Meter |
Optional |
Hydraulic Drive |
Standard |
Lighting |
Optional |
Number of Blades |
3 |
Product Use |
Residential |
Recommended Oil Type |
10W-30 |
Roll-Over Protection (ROPS) |
Optional |
Seat |
19" Gaming Style |
Spindle Bearings |
Maintenance-free |
Spindle Housing |
Cast-Aluminum |
Start Type |
Electric |
Steering Controls |
Twin Lever |
Steering Dampeners |
Standard Dampers |
Terrain Type |
Flat with Obstacles |
Tires |
12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear |
Transmission |
Dual Hydrostatic HG-EZT2200 |
Washout Port |
Standard |
Disclaimer
*23 HP gross (726 cc) at 3,300 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
†See retailer for complete warranty details.
‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
