- Over 100 years of Pro DNA course through the veins of every mower we build.
- Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
- The gaming-style seat gives you big time support exactly where you need it.
- The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
- Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
- Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
- The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
- The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through.
- Aggressive paint job that says you don't keep up with the Jones', you are the Jones'.
- Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

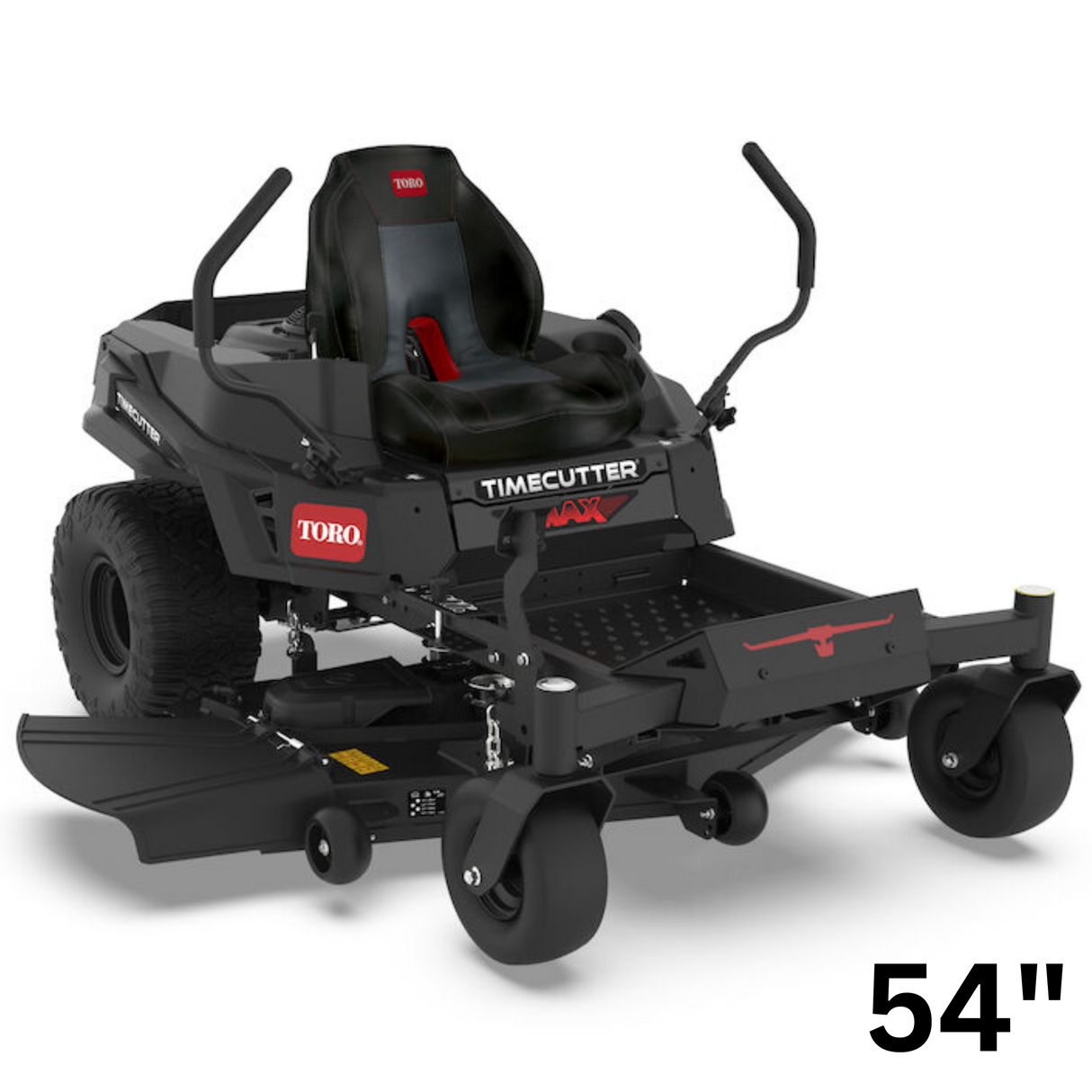

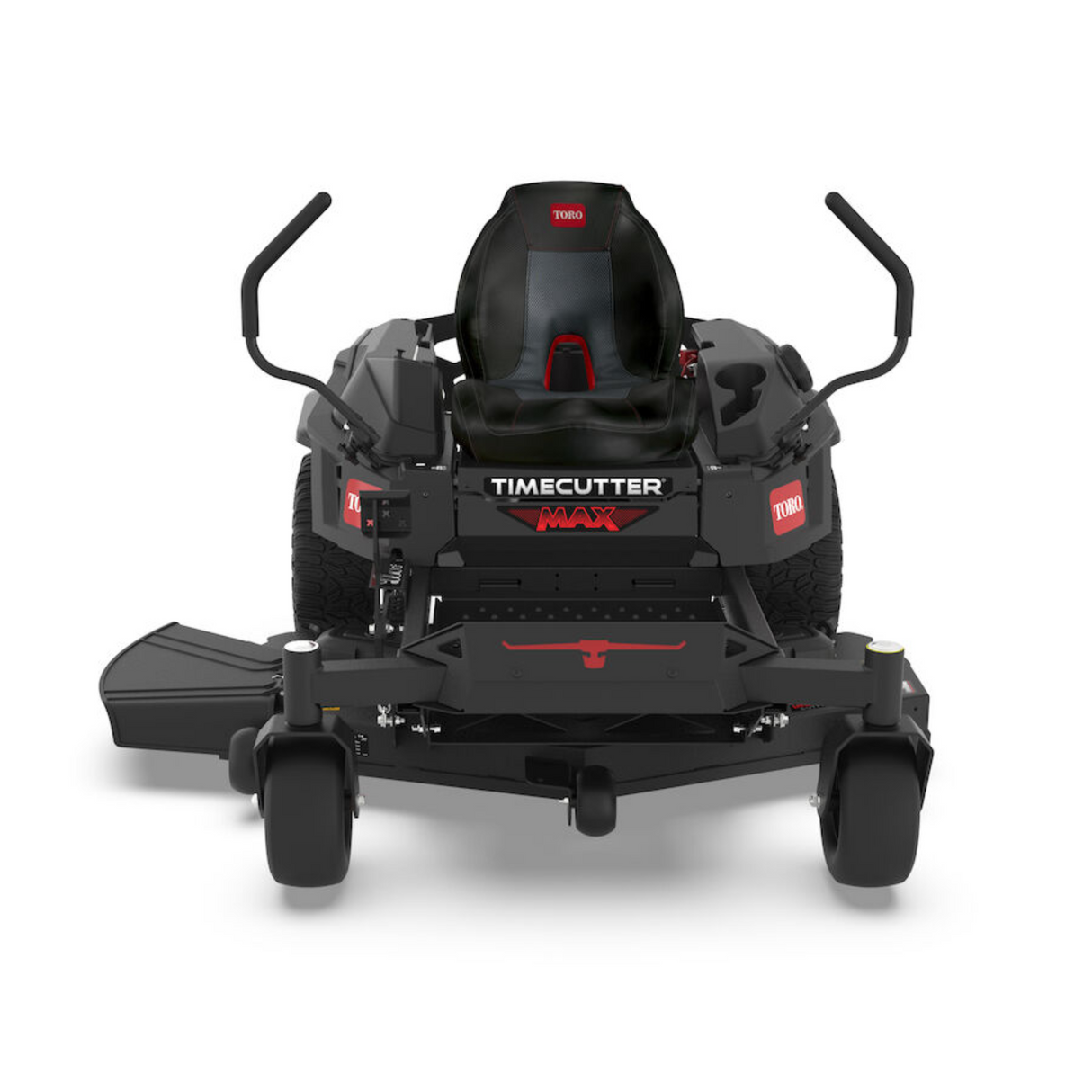

No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.
Specifications
Air Filter |
Standard Kawasaki Air Cleaner |
Anti Scalp Wheels |
3 Standard |
Armrests |
Optional |
Bagger Capacity |
4.9 bushels |
Blade Tip Speed |
17,700 ft/min / 5,395 m/min |
CARB Compliant |
Not CARB Compliant |
Carrier Frame |
3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
Caster Tires |
12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic |
Clutch |
Electromagnetic |
Comfort Platform |
Standard Suspension |
Cooling System |
Air Cooled |
Crankshaft |
1" (25 mm) w/Steel Protector |
Cup Holder |
Standard |
Cutter System |
Steel Cutting Blade |
Cutting Width |
54 in / 137 cm |
Deck Design |
10-Gauge steel IrongForged®
|
Deck Material |
10 Gauge Steel |
Discharge Chute |
Side |
Drive System |
Hydrostatic |
Drive Tires |
20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm) |
Drive Type |
Rear-Wheel Drive |
Engine |
23 hp* Kawasaki® V-Twin 726cc |
Engine Brand |
Kawasaki |
Engine Displacement (cc) |
726 cc |
Engine Horsepower |
23.0 hp |
Engine Power (kW) |
17.2 kW |
Foot Operated Height of Cut |
Standard |
Forward Ground/Transport Speed |
Up to 7.0 mph / 11.2 kph |
Forward Mowing Speed |
Up to 7.0 mph / 11.2 kph |
Frame |
3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
Fuel Capacity |
5 gal. / 18.9 L / 20 Qt. |
Fuel Type |
Gasoline |
Greasable Bearings |
Yes |
Height of Cut |
1.0 - 5.0 in. / 2.5 - 12.7 cm |
Hitch Bracket |
Standard |
Hour Meter |
Optional |
Hydraulic Drive |
Standard |
Lighting |
Optional |
Number of Blades |
3 |
Product Use |
Residential |
Recommended Oil Type |
10W-30 |
Roll-Over Protection (ROPS) |
Optional |
Seat |
19" Gaming Style |
Spindle Bearings |
Maintenance-free |
Spindle Housing |
Cast-Aluminum |
Start Type |
Electric |
Steering Controls |
Twin Lever |
Steering Dampeners |
Standard Dampers |
Terrain Type |
Flat with Obstacles |
Tires |
12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear |
Transmission |
Dual Hydrostatic HG-EZT2200 |
Washout Port |
Standard |
Disclaimer
*24 HP gross (725 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
