- 23.3 HP (17.3 kW) Kubota D902
- 42" width with bucket
- Turf friendly at only 2013 pounds
- Patented, easy-to-use traction control system

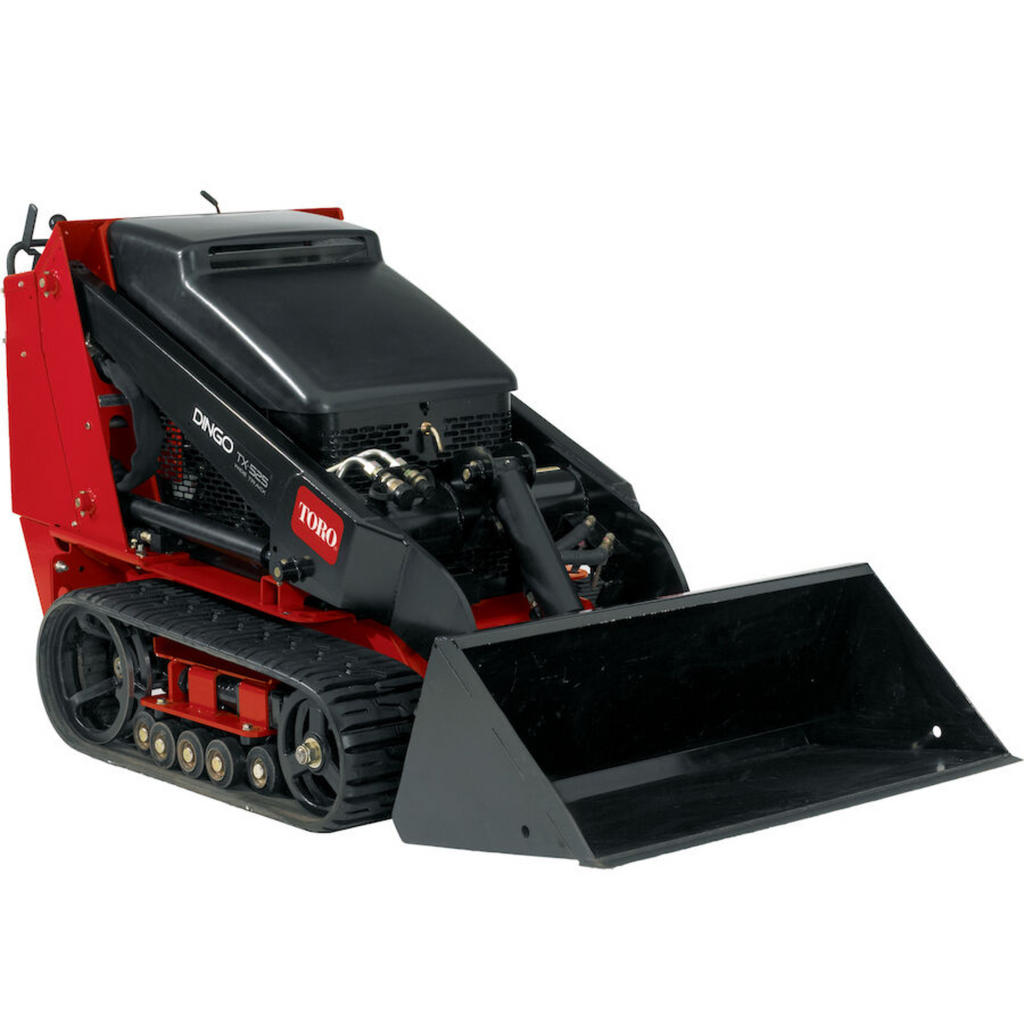

Diesel. Done Right.
Our diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachment, yet has a ground pressure as low as 3.4 psi. And because they're part of the full-line family, these diesels are compatible with all of Toro's compact utility loader attachments.

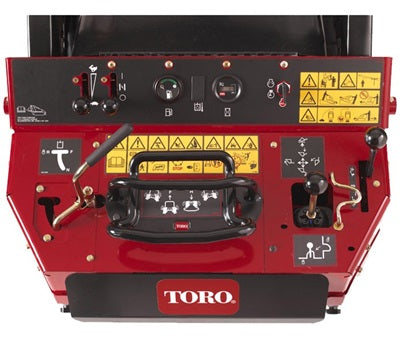

Simple Controls
You're up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms - all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.
Exclusive TX Track Drive
Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.
4-Pump Hydraulic System
4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!
Compact Size
Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.
Liquid-Cooled Diesel Engine
The 23.3 hp (17.3 kw) Kubota diesel engines torque curve combined with the added auxiliary hp provide attachments the added power tough jobs require.
Reinforced Tracks
Durable Kevlar reinforced tracks offer extended life, unlike competitive units with metal inserts. Open design of tracks offers self cleaning, preventing the collection of sand, rock, mud, and debris that could jam tracks.
Specifications
| Air Filter |
Two-stage, heavy-duty, remote |
| Cooling System |
Liquid Cooled |
| Displacement (cc) |
901 |
| Displacement (cu. in.) |
55 |
| Dump Angle |
38 degrees |
| Dump Height (cm) |
117.1 |
| Dump Height (inches) |
46.1 |
| Engine Make |
Kubota |
| Engine Model |
D902E3B |
| Fuel Tank (gallons) |
6 |
| Fuel Tank (liters) |
23 |
| Fuel Type |
Diesel |
| Ground Clearance (cm) |
11.7 |
| Ground Clearance (inches) |
4.6 |
| Ground Pressure |
3.5 psi |
| Ground Speed Forward (mph) |
4.5 |
| Ground Speed Foward (km/h) |
7.2 |
| Ground Speed Reverse (km/h) |
3.2 |
| Ground Speed Reverse (mph) |
2 |
| Hinge Pin Height (cm) |
167.1 |
| Hinge Pin Height (inches) |
65.8 |
| Hydraulic Flow Auxilary |
13.8 gpm |
| Hydraulic Flow Traction |
16.9 gpm (each pump) |
| Hydraulic Pressure |
3000 PSI |
| Loader Arms |
Radial |
| Manufacturer's Gross HP Rating (HP) |
23.3 |
| Manufacturer's Gross HP Rating (kW) |
17.3 |
| Max Operating Height (cm) |
229 |
| Max Operating Height (inches) |
90.1 |
| Oil Capacity (liters) |
3.63 |
| Oil Capacity (quarts) |
3.84 |
| Overall Height (cm) |
117.1 |
| Overall Height (inches) |
46.1 |
| Overall Length w/bucket (cm) |
233.7 |
| Overall Length w/bucket (inches) |
92 |
| Overall Length w/o bucket (cm) |
180 |
| Overall Length w/o bucket (inches) |
70.7 |
| Overall Width (cm) |
104 |
| Overall Width (inches) |
41 |
| Rated Operating Capacity - 35% of Tip Capacity (kg) |
251 |
| Rated Operating Capacity - 35% of Tip Capacity (lbs) |
553 |
| Reach – Fully Raised (cm) |
55.4 |
| Reach – Fully Raised (inches) |
21.8 |
| Reservoir Capacity (gallons) |
10.5 |
| Reservoir Capacity (liters) |
40 |
| RPM |
3400 |
| Tip Capacity (kg) |
717 |
| Tip Capacity (lbs) |
1580 |
| Track Length (inches) |
96.6 |
| Track Length(cm) |
245 |
| Track Width (cm) |
24.1 |
| Track Width (inches) |
9.5 |
| Tracks |
Sprocket-drive, 10 road wheels per side |
| Traction |
Dual Hydrostatic Pump |
| Weight (kg) |
907 |
| Weight (lbs) |
2013 |
| Wheelbase (inches) |
31.2 |
|
