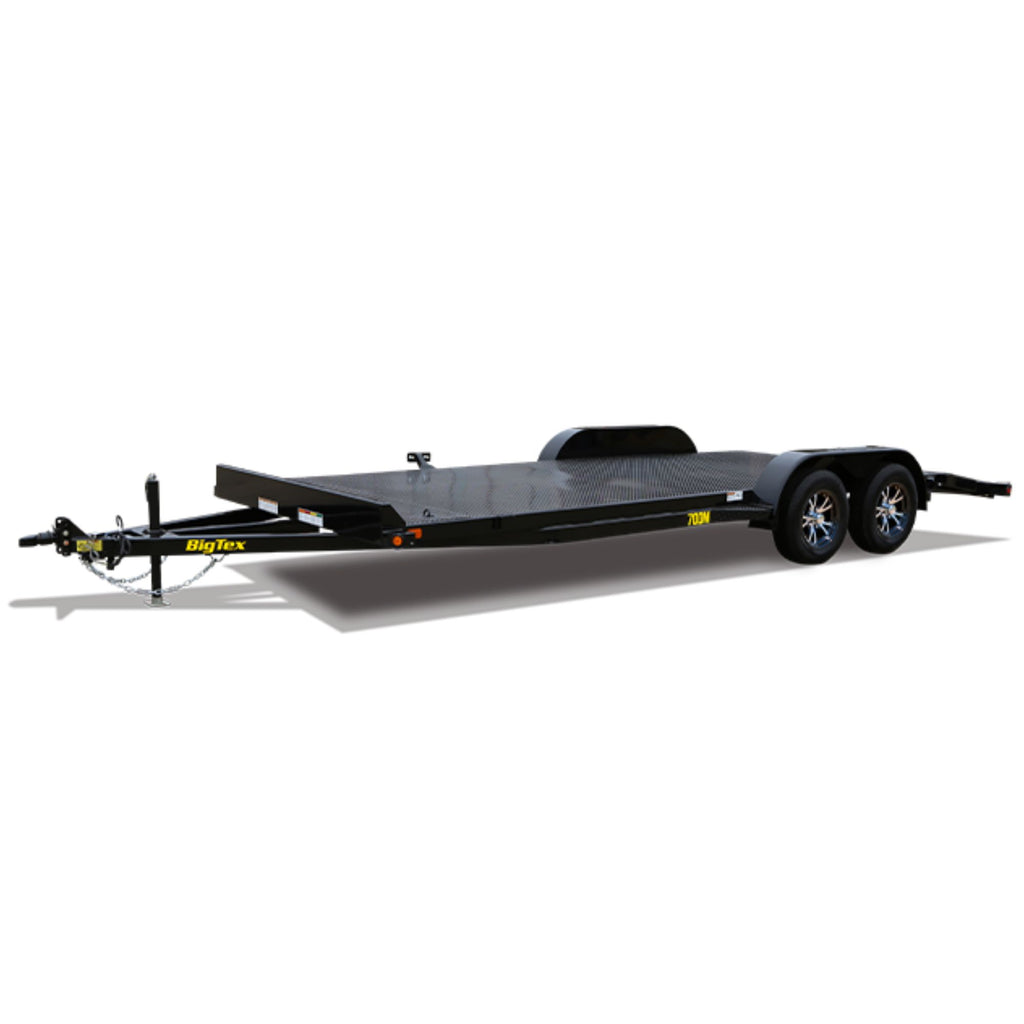

Our top-of-the-line, premier car hauler, the 70DM Diamond Back Car Hauler delivers the hauling capabilities you demand with the eye-catching looks you’ve always wanted. Aluminum wheels, steel floor, and diamond-plate rear slide-out ramps make the 70DM both easy to use and easy to look at. Plus, its box tubing frame gives the trailer added strength and durability. With both looks and hauling prowess, the 70DM is the best of both worlds.
|
Standard Feature |
Available Options |
| Axles |
2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self Adjusting Electric Brake on Front Axle |
Electric Brakes on 2nd Axle |
| Suspension |
Multi-Leaf Spring w/ Equalizer 4” x 2”x.188" Steel Tubing |
|
| Coupler |
|
- 2-5/16” Forged Coupler
- 2-5/16” Stamped Coupler
|
| Safety Chains |
1/4” Grd. 70 w/Safety Latch Hook (2 each) 4” x 2”x .188" Angle |
|
| Jack |
2,000# Top Wind, Set-Back Jack |
|
| Cross-Members |
3” x 2” x 3/16” Angle 5’ x 20” Formed Diamond Plate Rear Slide-In Ramps |
|
| Front Stop Rail |
3/16" Fabricated Front Stop Rail |
Front Rockshield (Aluminum Tread Brite) |
| Floor |
1/8" Diamond Plate |
|
| Dovetail |
Integrated Dovetail |
|
| Stake Pockets |
|
Additional Stake Pockets (Each) |
| Trailer Plug |
7-Way RV |
|
| Lights |
L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
|
| Wiring |
Grommet-Mounted Lifetime L.E.D. Lighting |
|
| Tires |
ST205/75 R-15 Load Range C |
|
| Bolt Pattern |
5 Bolt |
|
| Wheels |
Aluminum Wheels |
|
| Spare Mount |
Side Spare Tire Mount |
|
| Spare Tire |
|
Spare Tire (ST225/75 R-15 LR-D, Aluminum w/ Black Trim) |
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| Tie-Downs |
(4) Recessed D-Rings |
Additional Recessed D-Rings in Floor |
| Storage |
|
- A-Frame Tongue Box (Aluminum Tread Brite)
- A-Frame Tongue Box (Steel)
|
| Front Rock Shield |
Front Rockshield (Aluminum Tread Brite) |
|
| MODEL |
70DM-18 |
| PULL TYPE |
Bumperpull |
| GVWR |
7000 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
1970 lbs |
| CARGO CAPACITY |
5030 lbs |
| BED LENGTH |
18' |
| BED WIDTH |
83" |
| A |
217-1/2" |
| B |
132" |
| C |
85-1/2" |
| D |
49" |
| MODEL |
70DM-20 |
| PULL TYPE |
Bumperpull |
| GVWR |
7000 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
2125 lbs |
| CARGO CAPACITY |
4875 lbs |
| BED LENGTH |
20' |
| BED WIDTH |
83" |
| A |
240" |
| B |
150" |
| C |
90" |
| D |
49" |
