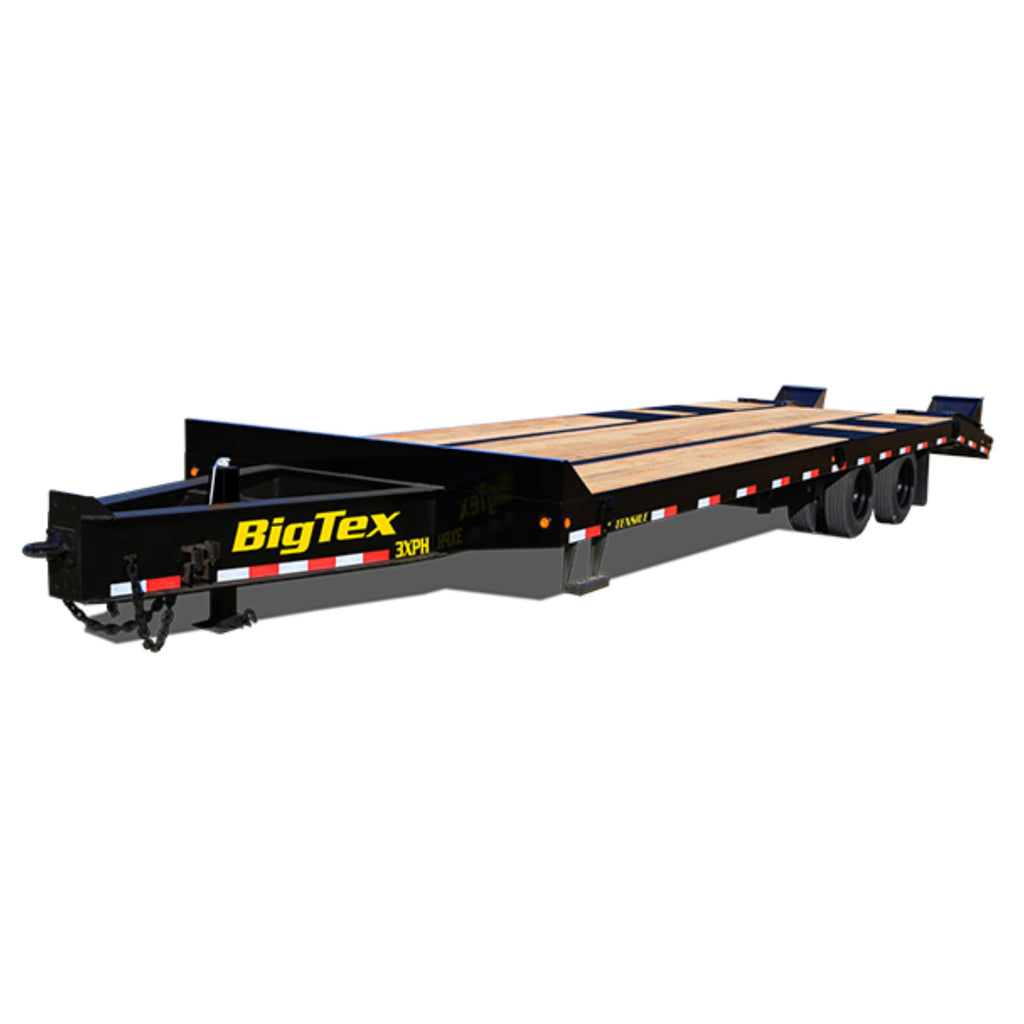

The biggest jobs require a super-duty trailer that never quits. A trailer that never gives us, the 3XPH Super Duty Tandem Dual Axle Pintle Trailer is unyielding, and with 15K axles and premium adjustable suspension it’s built to tackle the most heavy-duty and high-capacity jobs. It’s ready to haul extremely heavy equipment, machinery, and large loads with a 30,000 lbs G.V.W.R. And you won’t have to worry about loading and unloading being difficult with its heavy-duty, spring-assist, double-hinged ramps. With this trailer, the big jobs don’t stand a chance.
|
Standard Feature |
Available Options |
| Axles |
2 - 15,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps |
|
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles |
- Air Brake Assembly w/ABS on Front, Spring Brake Chambers & Auto Slacks
- Electric Over Hydraulic Brakes (Drum)
|
| Suspension |
Heavy Duty 44,000# Adjustable |
|
| Coupler |
3" ID Pintle Ring |
|
| Safety Chains |
1/2" Grade 80 w/ Safety Latch Hook (2 ea) |
|
| Jack |
12,000# Drop-Leg Jack (Top Wind) |
- Dual Single-Speed Drop-Leg Jacks
- Dual 2-Speed Landing Gear
- Dual Electric Over Hydraulic Jacks by Stillwell™
|
| Frame |
12" I-Beam, 22# |
|
| Cross-Members |
6" Jr. I Beam, 16" Centers |
|
| Front Stop Rail |
3/16" Fabricated Front Stop Rail |
|
| Floor |
APEX Fortified Lumber |
Blackwood Pro Rubber Infused Lumber Floor (per linear foot) |
| Ramps |
5' Double Hinged, Spring Assisted Flip-Over Ramps |
- 8' Rear Slide-In Ramps (Straight Deck Only)
- (2) 5' MEGA Ramps
|
| Dovetail |
5' Cleated Dovetail |
|
| Stake Pockets |
Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
Recessed, Grommet-Mounted L.E.D. Lighting |
|
| Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
| Tires |
ST215/75 R-17.5 Load Range H Radial Tires |
|
| Bolt Pattern |
8x275 MM BC Hub |
|
| Spare Mount |
Front Spare Tire Mount |
|
| Spare Tire |
ST215/75 R-17.5 Load Range H Radial Tire |
|
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| Rubrail |
3/8” Heavy Duty Rub Rail |
|
| Tie-Downs |
|
Extra 5/8" D-Rings |
| Break-Away Kit |
Complete Breakaway System w/ Zip Breakaway Cable |
|
| Mudflaps |
Standard |
|
| Storage |
|
- Lockable Lid Over Tool Storage in Tongue
- Low Profile Tool Box 12” x 18” x 36” (Side Mount)
|
| Cargo Winch |
|
- 4" Sliding Winch (Each)
- 4" Weld-On Winch (Each)
- Sliding Winch Track
|
| Pipe Chain Spools |
1-1/4” Pipe Chain Spools Between Stake Pockets Pockets |
4" x 30' Strap |
| Side Rail |
8" Channel |
|
| Steps & Handles |
(2) Side Bed Steps |
|
| Model |
3XPH-25+5 |
3XPH-20+5 |
| Pull Type |
Bumperpull |
Bumperpull |
| GVWR |
30000 lbs |
30000 lbs |
| GAWR (Ea. Axle) |
15000 lbs |
15000 lbs |
| Empty Weight |
6300 lbs |
5800 lbs |
| Cargo Capacity |
23700 lbs |
24200 lbs |
| Bed Length |
30' |
25' |
| Bed Width |
102" |
102" |
| A |
288" |
240" |
| B |
232" |
186" |
| C |
96" |
80" |
| Tongue Length |
70" |
70" |
