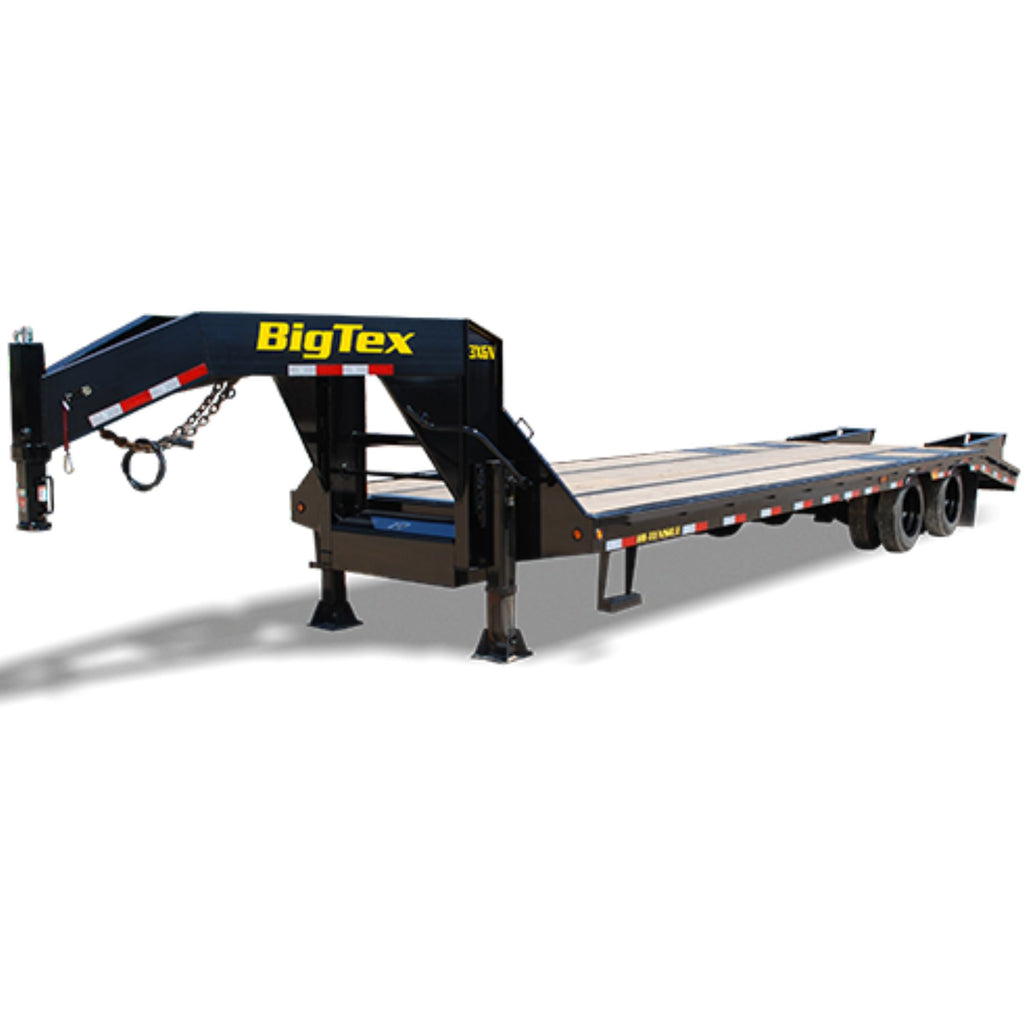

Haul big and heavy with the 3XGN Super Duty Tandem Dual Gooseneck Trailer, a super heavy-duty gooseneck trailer that’s packing 15,000-lb axles to transport the heaviest equipment—even in difficult and rugged conditions. That’s why this trailer is designed with a 30,000 lbs G.V.W.R., giving construction contractors, industrial operations, and heavy equipment dealers the strength and dependability needed to handle their day-to-day grind. From top to bottom, it’s built to work hard just like you do.
|
Standard Feature |
Available Options |
| Axles |
2 - 15,000# Dual Wheel w/ Oil Bath & Valcrum Caps |
|
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles |
Air Brake Assembly w/ABS on Front, Spring Brake Chambers & Auto Slacks Electric Over Hydraulic Brakes (Drum) |
| Suspension |
Heavy Duty 44,000# Adjustable |
|
| Coupler |
2-5/16” Ball, Adjustable Square Crank |
|
| Safety Chains |
1/2" Grade 80 w/ Safety Latch Hook (2 ea) |
|
| Jack |
Dual Two Speed Landing Gear- 50K lbs. Capacity (Bolted On) |
Dual Electric Over Hydraulic Landing Gear by Stillwell™ |
| Frame |
12" I-Beam, 22# up to 30'. 14" I Beam on 30'+ Long |
|
| Cross-Members |
6" I-Beam, 16" Centers |
|
| Floor |
APEX Fortified Lumber |
|
| Ramps |
5’ Double Hinged Spring Assist Flip-Over Ramps, (Straight Deck Models do not Include Ramps) |
|
| Dovetail |
5' Cleated Dovetail (standard on +5 Models) Straight Deck (available on 36' and 40' lengths) |
|
| Stake Pockets |
Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
Recessed, Grommet-Mounted L.E.D. Lighting |
|
| Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
| Tires |
ST215/75 R-17.5 Load Range H (Dual) |
|
| Bolt Pattern |
8-Bolt |
|
| Wheels |
17.5" HC x 6.75", 8x275 MM BC Hub Pilot; Dual Wheel |
|
| Spare Mount |
Top of Neck Spare Tire Mount |
|
| Spare Tire |
Spare Tire & Wheel (ST215/75 R-17.5 LR-H) |
|
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
|
| Rubrail |
3/8” Heavy Duty Rub Rail on Both Sides |
|
| Break-Away Kit |
Complete Breakaway System w/ Zip™ Breakaway Cable and Charger |
|
| Mudflaps |
Standard |
|
| Storage |
Front Lockable Toolbox Uprights |
- Low Profile Tool Box 12” x 18” x 36” (Side Mount)
- Removable Deck on the Neck- Bolt On (8' W x 6' L)
|
| Cargo Winch |
Sliding Winch Track (standard on Trailer 28' or Longer ) |
- 4" Sliding Winch (Each)
- 4" Weld-On Winch (Each)
- Sliding Winch Track (Per 6' Section), for trailers less than 33' long
|
| Pipe Chain Spools |
1-1/4” Pipe Chain Spools Between Stake Pockets Pockets |
- 4" x 30' Strap
- Extra 5/8" D-Rings
|
| Steps & Handles |
(2) Retractable Side Bed Steps + Handles |
|
| Model |
3XGN-40 |
3XGN-36 |
3XGN-35+5 |
3XGN-30+5 |
3XGN-28+5 |
3XGN-25+5 |
3XGN-20+5 |
| Pull Type |
Gooseneck |
Gooseneck |
Gooseneck |
Gooseneck |
Gooseneck |
Gooseneck |
Gooseneck |
| GVWR |
30000 lbs |
30000 lbs |
30000 lbs |
30000 lbs |
30000 lbs |
30000 lbs |
30000 lbs |
| GAWR (Ea. Axle) |
15000 lbs |
15000 lbs |
15000 lbs |
15000 lbs |
15000 lbs |
15000 lbs |
15000 lbs |
| Empty Weight |
10370 lbs |
9290 lbs |
10200 lbs |
9800 lbs |
9140 lbs |
8440 lbs |
6980 lbs |
| Cargo Capacity |
19630 lbs |
20710 lbs |
19800 lbs |
20200 lbs |
20860 lbs |
21560 lbs |
23020 lbs |
| Bed Length |
40' |
36' |
40' |
35' |
33' |
30' |
25' |
| Bed Width |
102" |
102" |
102" |
102" |
102" |
102" |
102" |
| Tongue Length |
97" |
97" |
97" |
97" |
97" |
97" |
97" |
