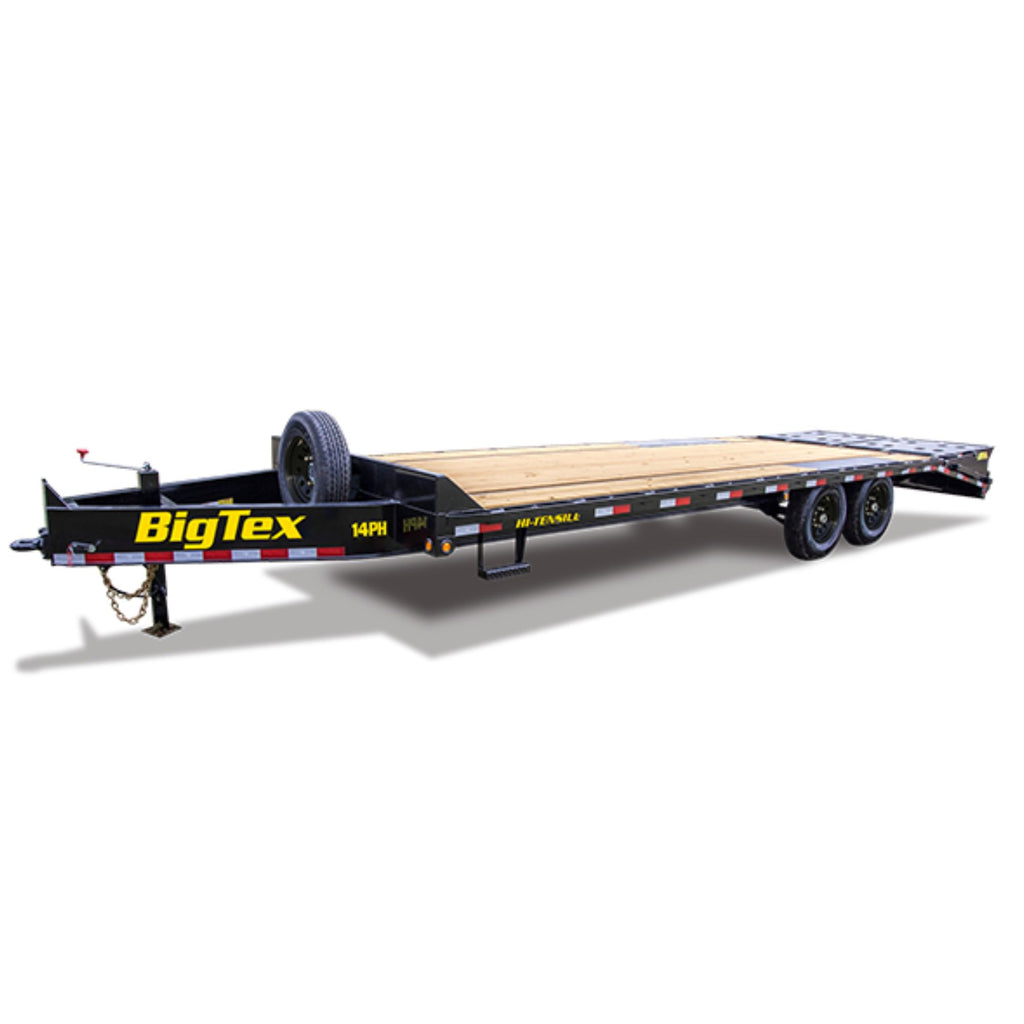

Is your vehicle equipped with a pintle hitch to take on heavy-duty towing jobs? Built for rugged and off-road conditions, the sturdy and reliable 14PH Single Wheel Tandem Axle Pintle Trailer is made for your needs. Perfect for agricultural and industrial operations, the 14PH delivers exceptional performance at an economical cost. It has standard features such as two 7K axles, spare tire and wheel, LED lighting package, and a low-profile bed with a pierced-beam frame. Hauling everything from construction materials and machinery to large hay bales, this is a trailer that delivers a huge bang for your buck.
|
Standard Feature |
Available Options |
| Axles |
2 - 7,000# Premium, with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles |
Electric Over Hydraulic Brakes (Drum) |
| Suspension |
Multi-Leaf Slipper Spring w/ Equalizer |
|
| Coupler |
3" ID Pintle Ring |
2-5/16" Ball Coupler in Lieu of Pintle Ring |
| Safety Chains |
3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
|
| Jack |
12,000# Drop-Leg Jack (Top Wind) |
- Dual Single-Speed Drop-Leg Jacks
- Dual 2-Speed Landing Gear
- Dual Electric Over Hydraulic Jacks by Stillwell™
|
| Frame |
12" I-Beam, 14# |
|
| Cross-Members |
3" Channel |
|
| Front Stop Rail |
3/16" Fabricated Front Stop Rail |
|
| Floor |
APEX Fortified Lumber |
Blackwood Pro Rubber Infused Lumber Floor (per linear foot) |
| Ramps |
5' Double Hinged, Spring Assisted Flip-Over Ramps |
- 8' Rear Slide-In Ramps (Straight Deck Only)
- (2) 5' Flip-Over MEGA Ramps
|
| Dovetail |
5' Cleated Dovetail |
|
| Stake Pockets |
Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
Recessed, Grommet-Mounted L.E.D. Lighting |
|
| Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
| Tires |
ST235/80 R-16 Load Range E Radial Tires |
Tire Upgrade (ST235/80 R-16 LR-G) Includes Spare |
| Bolt Pattern |
8-Lug |
|
| Spare Mount |
Front Spare Tire Mount |
|
| Spare Tire |
ST235/80 R-16 Load Range E Radial Tire |
|
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| Rubrail |
3/8” Heavy Duty Rub Rail |
|
| Tie-Downs |
|
Extra 5/8" D-Rings |
| Break-Away Kit |
Complete Breakaway System w/ Zip Breakaway Cable |
|
| Storage |
Storage Tray in Tongue |
Low Profile Tool Box 15” x 15” x 36” (Side Mount) |
| Cargo Winch |
|
- 4" Sliding Winch (Each)
- 4" Weld-On Winch (Each)
- Sliding Winch Track
|
| Pipe Chain Spools |
1-1/4” Pipe Chain Spools Between Stake Pockets Pockets |
4" x 30' Strap |
| Side Rail |
5" Channel |
|
| Steps & Handles |
(2) Side Bed Steps |
|
| Model |
14PH-25+5 |
14PH-20+5 |
| Pull Type |
Bumperpull |
Bumperpull |
| GVWR |
15900 lbs |
15900 lbs |
| GAWR (Ea. Axle) |
7000 lbs |
7000 lbs |
| Empty Weight |
5080 lbs |
4580 lbs |
| Cargo Capacity |
10820 lbs |
11320 lbs |
| Bed Length |
30' |
25' |
| Bed Width |
102" |
102" |
| A |
300" |
240" |
| B |
216" |
180" |
| C |
84" |
60" |
| Tongue Length |
70" |
70" |
