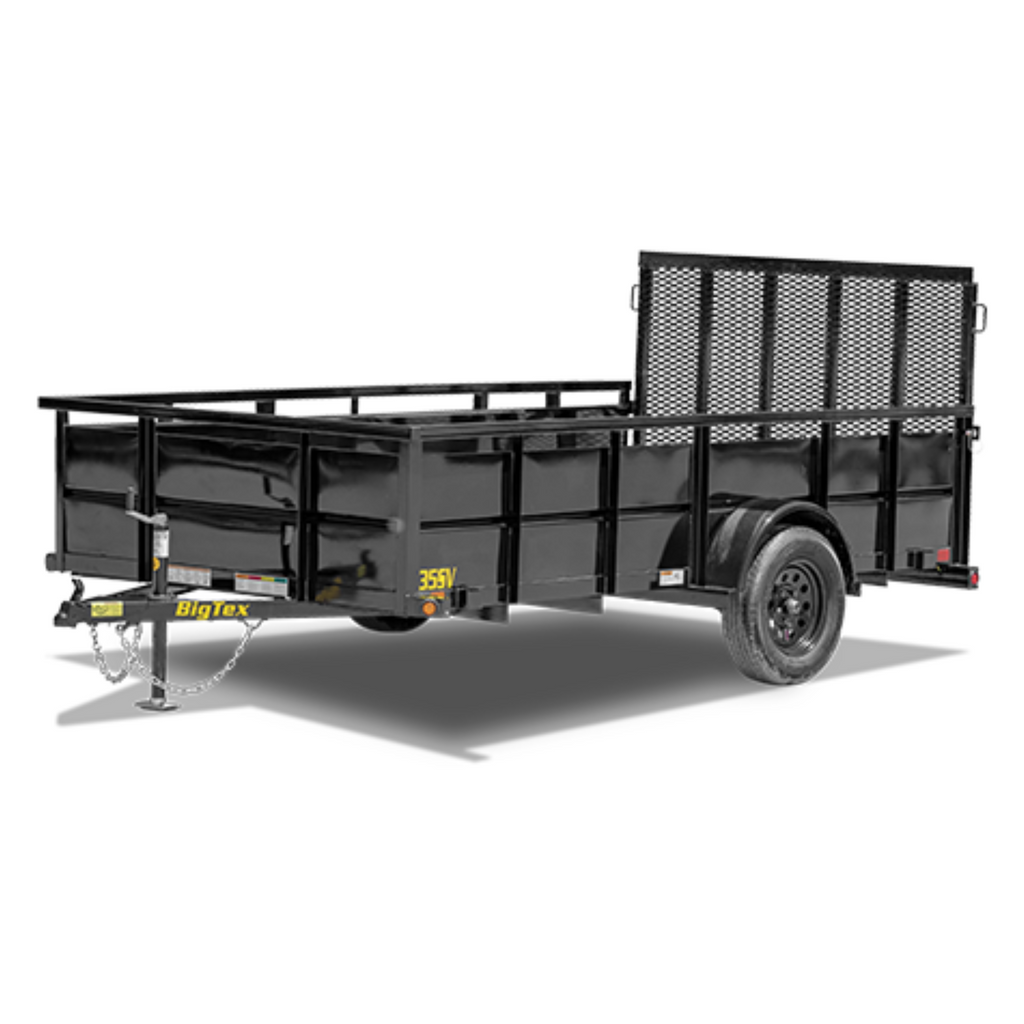

On the job and need a trailer with a bit more space to haul landscaping equipment and tools? Then it’s time to get to work with the 35SV Single Axle Vanguard Trailer. Designed to haul without hassle from job to job, the 35SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
|
Standard Feature |
Available Options |
| Axles |
3,500# Premium, Cambered Axle with Quick-Lubricating Hubs |
|
| Brakes |
Brake Flanges for Easy Brake Addition |
Electric Brakes w/ Complete Break-Away Kit |
| Suspension |
Multi-Leaf Slipper Spring |
|
| Coupler |
Demco EZ Latch |
2" Forged Coupler |
| Safety Chains |
1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
|
| Jack |
2,000# Top Wind, Set-Back Jack |
2,000# Fold-Up Jack |
| Frame |
3" x 2" x 3/16" Angle |
|
| Cross-Members |
3” x 2” x 3/16” Angle |
|
| Floor |
Treated Pine or Douglas Fir |
Blackwood Pro Rubber Infused Lumber Floor (per linear foot) |
| Fenders |
9" x 32" Rolled Formed w/ Back |
|
| Ramps |
|
- 4' Tall Rear Ramp Gate w/ Coil Spring Assist
- 5' Tall Rear Ramp Gate w/ Coil Spring Assist
|
| Stake Pockets |
|
Additional Stake Pockets (Each) |
| Trailer Plug |
4-Way Flat w/ Loom |
|
| Lights |
L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
|
| Wiring |
Grommet-Mounted Lifetime L.E.D. Lighting |
|
| Tires |
ST205/75 R-15 Load Range C |
|
| Bolt Pattern |
5 Bolt |
|
| Spare Mount |
Side Spare Tire Mount |
|
| Spare Tire |
|
Spare Tire (ST205/75R-15 LR-C) |
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| Tie-Downs |
(4) Tie Down Loops Inside Bed |
Additional Tie Loops |
| Sides |
28-1/2" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.) |
|
| Storage |
|
Bolt-On Landscape Box for (24" x 24" x 81-1/2") |
| Top Rail |
2" x 2" Square Tubing |
|
| MODEL |
35SV-10 |
| PULL TYPE |
Bumperpull |
| GVWR |
2995 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
1100 lbs |
| CARGO CAPACITY |
1895 lbs |
| BED LENGTH |
10' |
| BED WIDTH |
77" |

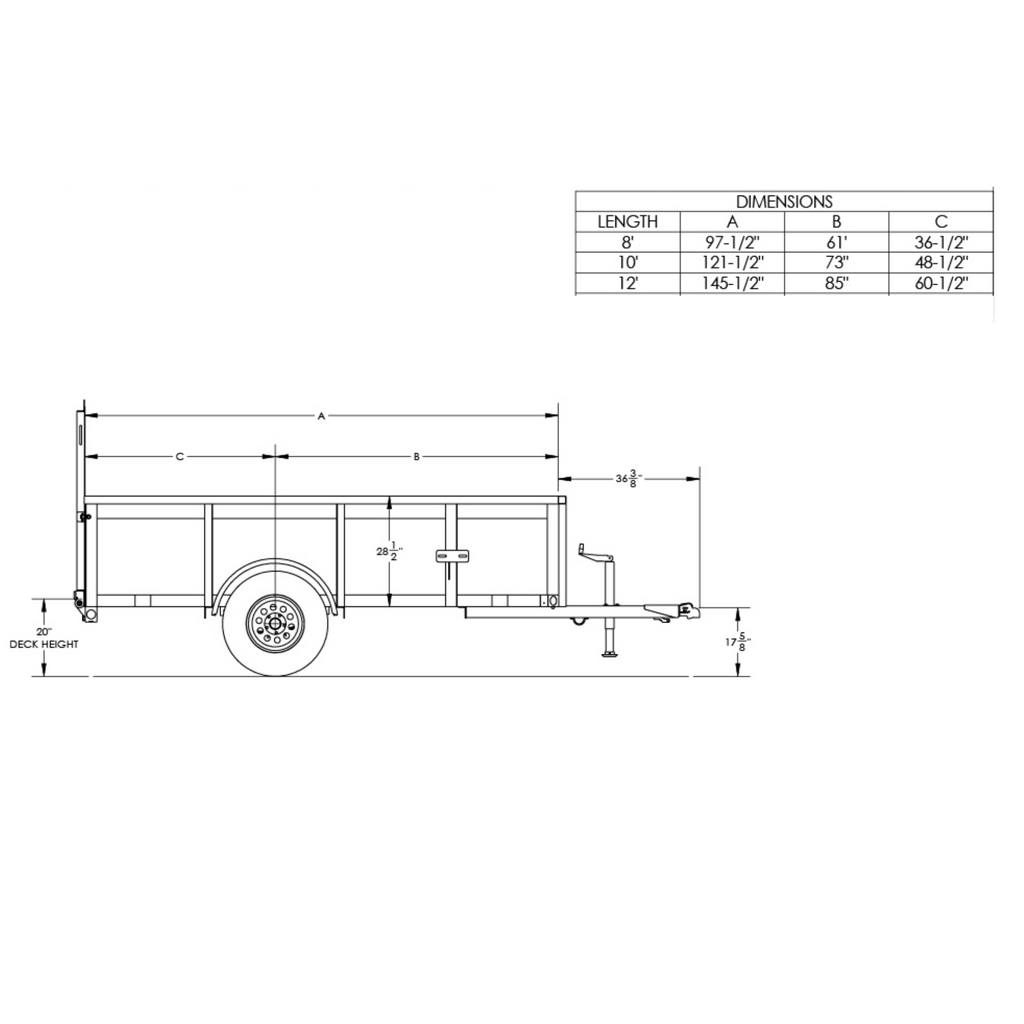

| A |
121-1/2" |
| B |
73" |
| C |
48-1/2" |
| TONGUE LENGTH |
36-1/8" |
| MODEL |
35SV-12 |
| PULL TYPE |
Bumperpull |
| GVWR |
2995 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
1290 lbs |
| CARGO CAPACITY |
1705 lbs |
| BED LENGTH |
12' |
| BED WIDTH |
77" |
| A |
145-1/2” |
| B |
85” |
| C |
60-1/2” |
| TONGUE LENGTH |
36-1/8" |
| MODEL |
35SV-14 |
| PULL TYPE |
Bumperpull |
| GVWR |
2995 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
1480 lbs |
| CARGO CAPACITY |
1515 lbs |
| BED LENGTH |
14' |
| BED WIDTH |
77" |
| A |
169-1/2” |
| B |
97” |
| C |
72-1/2” |
| TONGUE LENGTH |
36-1/8" |
