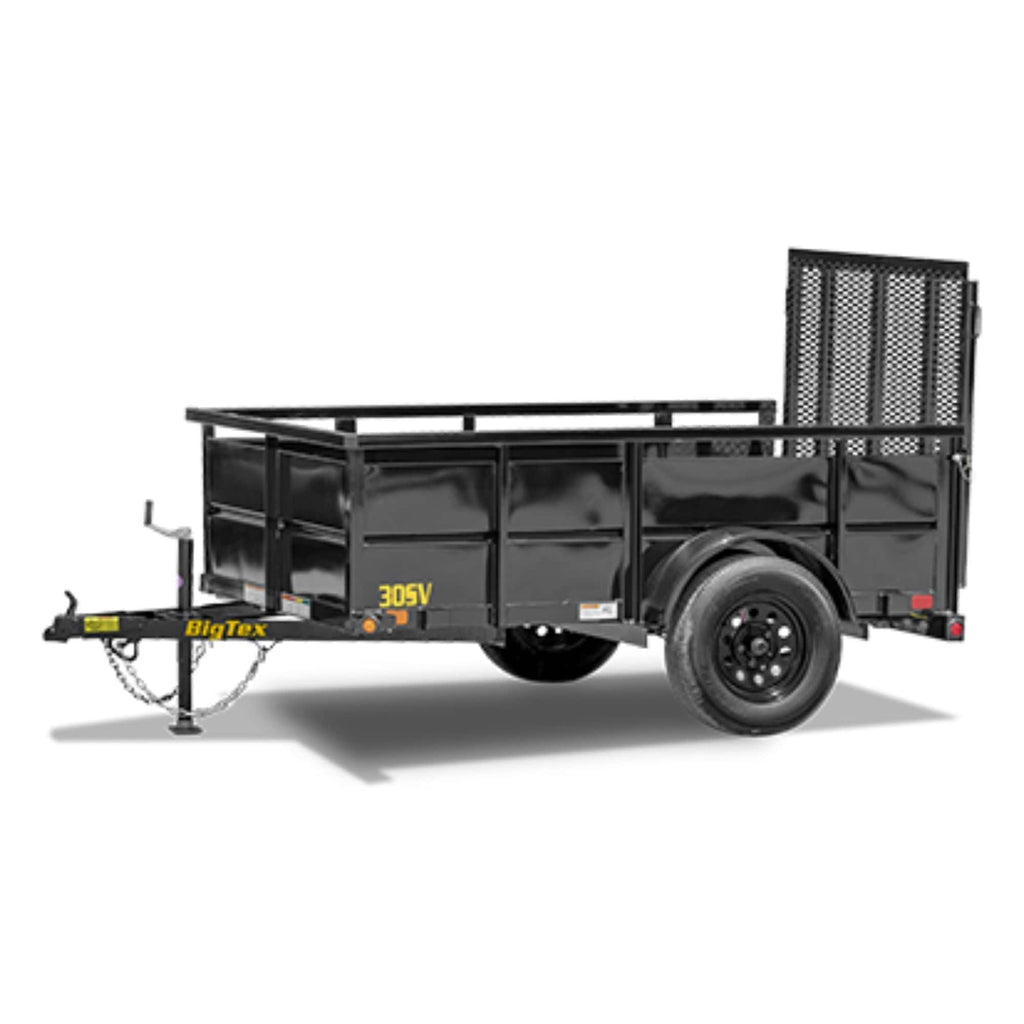

When it’s time to work, it’s time for the 30SV Single Axle Vanguard Trailer. Built-strong to haul your landscaping equipment without hassle from job to job, the 30SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
|
Standard Feature |
Available Options |
Axles |
3,500# Premium, Cambered Axle with Quick-Lubricating Hubs |
|
Brakes |
Brake Flanges for Easy Brake Addition |
Electric Brakes w/ Complete Break-Away Kit |
Suspension |
Multi-Leaf Slipper Spring |
|
Coupler |
Demco EZ Latch |
2" Forged Coupler |
Safety Chains |
1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
|
Jack |
2,000# Top Wind, Set-Back Jack |
2,000# Fold-Up Jack |
Frame |
3" x 2" x 3/16" Angle |
|
Cross-Members |
3” x 2” x 3/16” Angle |
|
Floor |
Treated Pine or Douglas Fir |
Blackwood Pro Rubber Infused Lumber Floor (per linear foot) |
Fenders |
9" x 32" Rolled Formed w/ Back |
|
Ramps |
|
- 4' Tall Rear Ramp Gate w/ Coil Spring Assist
- 5' Tall Rear Ramp Gate w/ Coil Spring Assist
|
Stake Pockets |
|
Additional Stake Pockets (Each) |
Trailer Plug |
4-Way Flat w/ Loom |
|
Lights |
L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
|
Wiring |
Grommet-Mounted Lifetime L.E.D. Lighting |
|
Tires |
ST205/75 R-15 Load Range C |
|
Bolt Pattern |
5 Bolt |
|
Spare Mount |
Side Spare Tire Mount |
|
Spare Tire |
|
Spare Tire (ST205/75R-15 LR-C) |
Paint Type |
Professional Finish w/ Primer Standard |
|
Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
Tie-Downs |
(4) Tie Down Loops Inside Bed |
Additional Tie Loops |
Sides |
28-1/2" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.) |
|
Storage |
|
Bolt-On Landscape Box (24" x 24" x 64-1/2") |
Top Rail |
2" x 2" Square Tubing |
|
MODEL |
30SV-08 |
PULL TYPE |
Bumperpull |
GVWR |
2995 lbs |
GAWR (EA. AXLE) |
3500 lbs |
EMPTY WEIGHT |
870 lbs |
CARGO CAPACITY |
2125 lbs |
BED LENGTH |
10' |
BED WIDTH |
60" |
A |
97-1/2" |
B |
61" |
C |
36-1/2" |
TONGUE LENGTH |
36-1/8" |
MODEL |
30SV-10 |
PULL TYPE |
Bumperpull |
GVWR |
2995 lbs |
GAWR (EA. AXLE) |
3500 lbs |
EMPTY WEIGHT |
970 lbs |
CARGO CAPACITY |
2025 lbs |
BED LENGTH |
12' |
BED WIDTH |
60" |
A |
121-1/2" |
B |
73" |
C |
48-1/2" |
TONGUE LENGTH |
36-1/8" |
MODEL |
30SV-12 |
PULL TYPE |
Bumperpull |
GVWR |
2995 lbs |
GAWR (EA. AXLE) |
3500 lbs |
EMPTY WEIGHT |
1070 lbs |
CARGO CAPACITY |
1925 lbs |
BED LENGTH |
14' |
BED WIDTH |
60" |
A |
145-1/2” |
B |
85” |
C |
60-1/2” |
TONGUE LENGTH |
36-1/8" |
