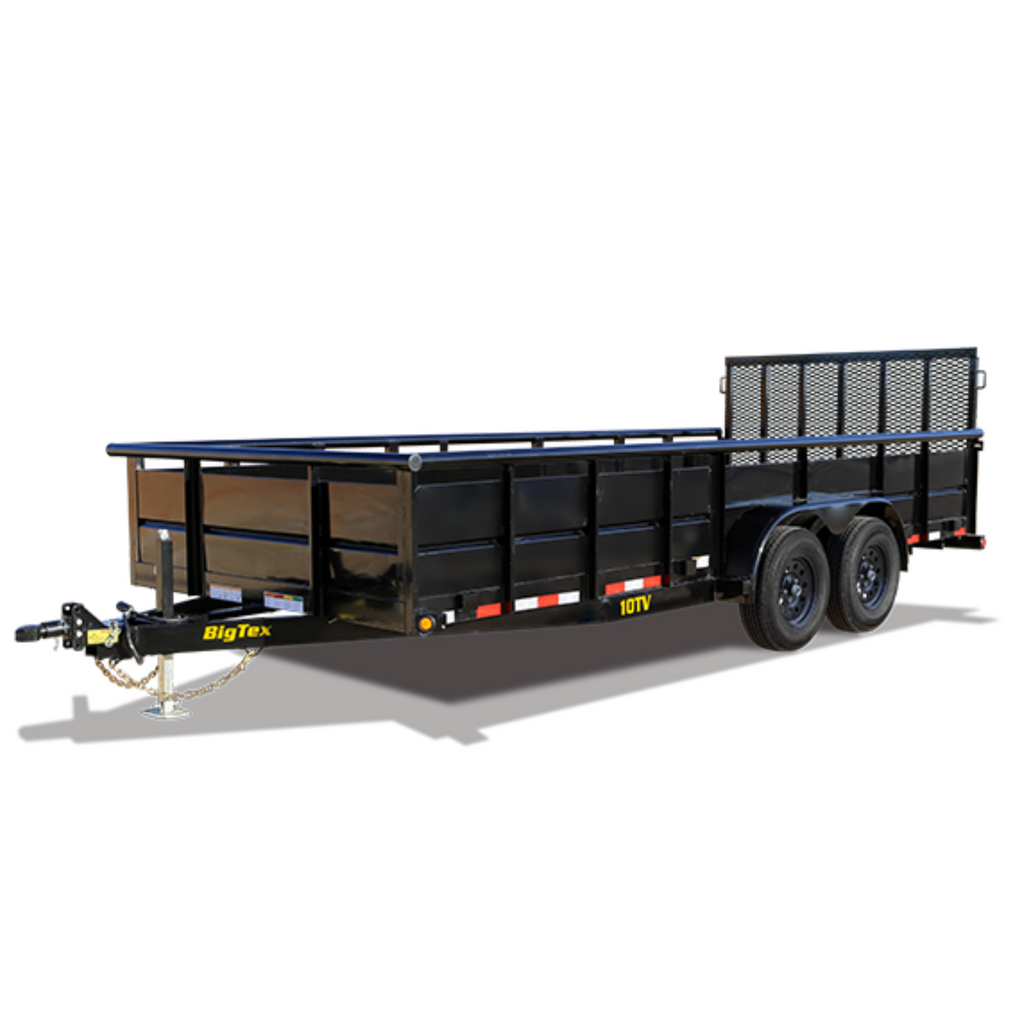

Rugged. Durable. Adaptable. Work harder and longer with the 83’’ wide 10TV Tandem Axle Vanguard Trailer, purpose-built for landscapers transporting heavy-duty lawn and garden equipment. Higher, v-crimped steel sides provide the strength you need to handle the day-to-day demands of your job while also securing and protecting cargo. No need to worry about cargo falling off during transportation. For the ultimate in versatility, it also includes an adjustable coupler that makes it a simple task to adjust to different hitch heights within a fleet of trucks—perfect for those running bigger landscaping operations.
|
Standard Feature |
Available Options |
| Axles |
2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self Adjusting Brakes |
|
| Suspension |
Multi-Leaf Slipper Spring w/ Equalizer |
|
| Coupler |
2-5/16” Demco EZ Latch |
Adjustable Pintle in Channel 2-5/16” Stamped Coupler |
| Safety Chains |
1/4" Grade 70 w/ Safety Latch Hook (2 ea) |
|
| Jack |
8,000# Drop Leg, Set-Back Jack (Bolted On) |
|
| Frame |
5" x 3" x 1/4" Angle |
|
| Cross-Members |
3” x 2” x 3/16” Angle |
|
| Floor |
Treated Pine or Douglas Fir |
Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot) |
| Fenders |
9" x 72" 16 Ga. Tear Drop Fender |
|
| Ramps |
4' Heavy Duty Integrated Ramp Gate wIth Gas Shock Assist |
5’ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist |
| Stake Pockets |
(4) Stake Pockets on Outside Frame |
Additional Stake Pockets (Each) |
| Trailer Plug |
7-Way RV |
|
| Lights |
L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
|
| Wiring |
Grommet-Mounted Lifetime L.E.D. Lighting |
|
| Tires |
ST225/75R-15 Load Range D |
|
| Bolt Pattern |
6 Bolt |
|
| Spare Tire |
|
Spare Tire (ST225/75R-15 LR-D) |
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| Tie-Downs |
(4) Tie Down Loops Inside Bed |
5/8" D-Ring Additional Tie Loops |
| Sides |
29-3/8" Tall Sides w/ 24" V-Crimped Steel Panels (16 Ga.) |
|
| Storage |
|
Bolt-On Landscape Box for (24" x 24" x 81-1/2") |
| Top Rail |
2" x 2" Square Tubing |
|
| Uprights |
3" x 2" x 3/16" Angle |
|
| MODEL |
10TV-18 |
| PULL TYPE |
Bumperpull |
| GVWR |
9990 lbs |
| GAWR (EA. AXLE) |
5200 lbs |
| EMPTY WEIGHT |
2350 lbs |
| CARGO CAPACITY |
7640 lbs |
| BED LENGTH |
18' |
| BED WIDTH |
83" |

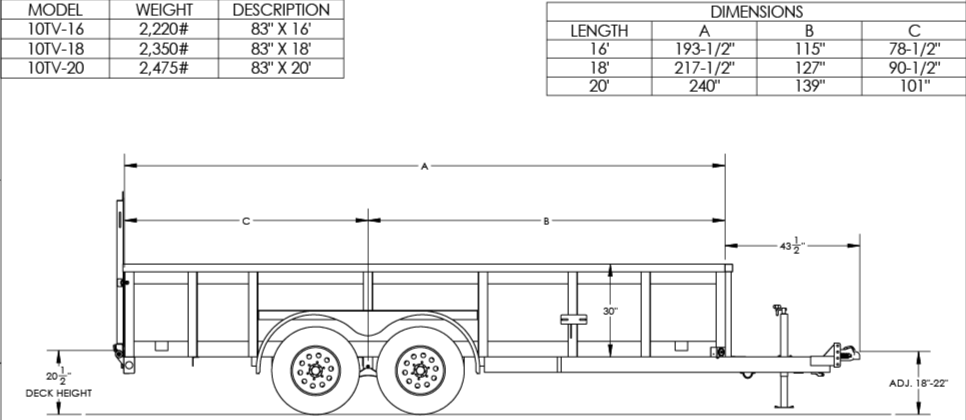

| A |
217-1/2" |
| B |
127" |
| C |
90-1/2" |
| TONGUE LENGTH |
43-1/2" |
| MODEL |
10TV-20 |
| PULL TYPE |
Bumperpull |
| GVWR |
9990 lbs |
| GAWR (EA. AXLE) |
5200 lbs |
| EMPTY WEIGHT |
2475 lbs |
| CARGO CAPACITY |
7515 lbs |
| BED LENGTH |
20' |
| BED WIDTH |
83" |
| A |
240" |
| B |
138" |
| C |
102" |
| TONGUE LENGTH |
43-1/2" |
