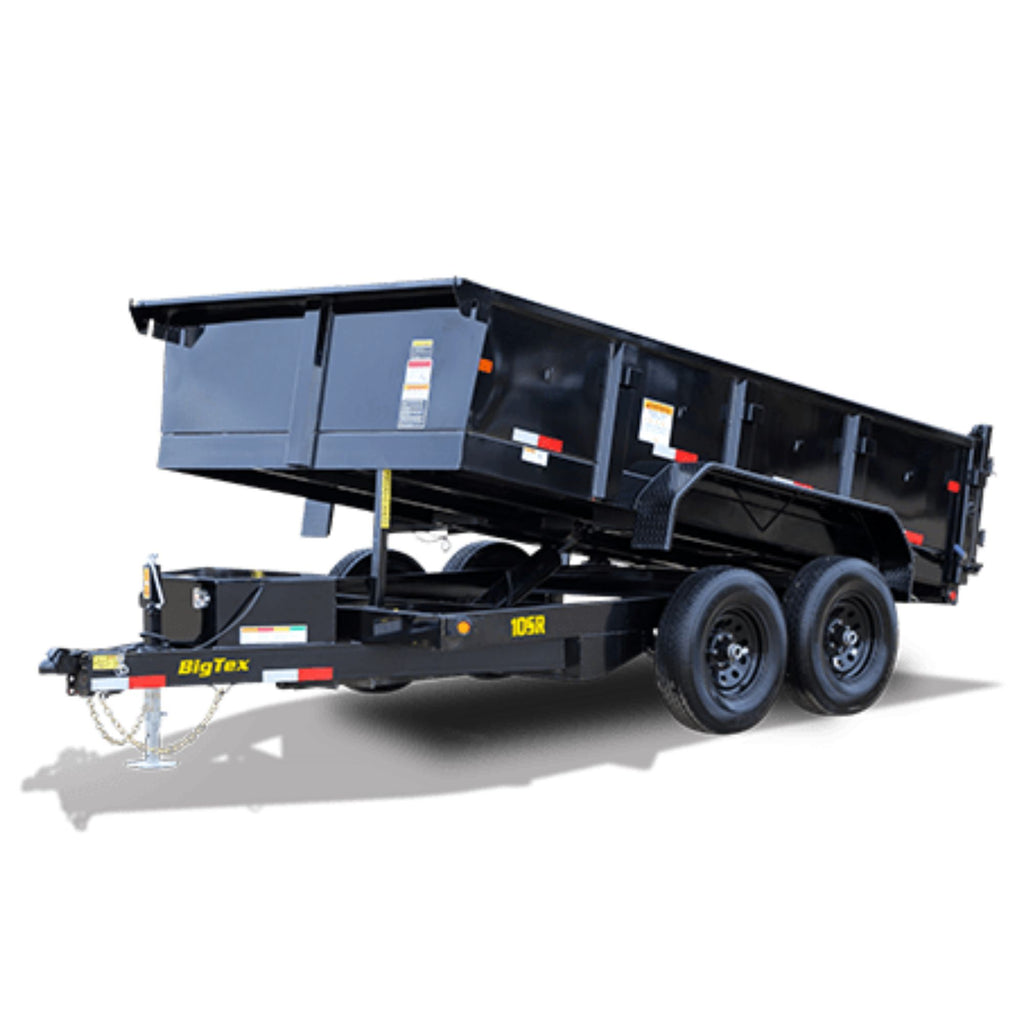

Designed, built, and powder coated for the long haul, the 10SR Pro Series Tandem Axle Single Ram Dump Trailer is a medium-duty workhorse that has your back. Hauling dirt, gravel, mulch, or even manure? No problem. The 10SR is equipped with a straight ram hydraulic lifting system that makes dump outs a smoother and more productive experience. From homeowners and ranchers to construction workers, it’s time to let the 10SR do the hard work and save your back—keeping you ready for tomorrow and every day after.
|
Standard Feature |
Available Options |
| Axles |
2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self-Adjusting Electric Brakes |
|
| Suspension |
Multi-Leaf Slipper Spring w/ Equalizer |
|
| Tongue |
6" Channel |
|
| Coupler |
Adjustable Forged 2-5/16” |
|
| Safety Chains |
1/4” Grd. 70 w/Safety Latch Hook (2 each) |
|
| Jack |
8,000# Top Wind |
|
| Frame |
6" Channel |
|
| Cross-Members |
3" Channel on 16" Centers |
|
| Floor |
10 Gauge Smooth Steel |
|
| Fenders |
9” x 72” 14 Ga. Diamond Plate Double Square Broke |
|
| Ramps |
Not Included |
6.5’ Slide In Ramp Package |
| Stake Pockets |
Stake Pockets Along Both Sides (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
Recessed, Grommet-Mounted L.E.D. Lighting |
|
| Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
| Tires |
ST235/80 R-16 Load Range E Radial Tires |
|
| Bolt Pattern |
6-Lug |
|
| Wheels |
Black Mod Steel |
|
| Spare Mount |
Side Spare Tire Mount |
|
| Spare Tire |
Not Included |
Spare Tire (ST235/80 R-15 LR-E) |
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
|
| Tie-Downs |
(4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control |
|
| Break-Away Kit |
Complete System with Breakaway Cable |
|
| Battery |
12V Deep Cycle |
|
| Charger |
5A 110V on Board Battery Charger |
|
| Gate |
Rear Combo Gate (Barn Doors & Spreader Gate) |
|
| J-Hooks |
Along sides and rear for Cargo Control |
|
| Power |
Power Up/Power Down & Gravity Down Hydraulic Pump |
|
| Ram |
Self-Contained Single Cylinder Lift |
|
| Sides |
24" Tall Sides (12-Gauge) |
|
| Storage |
Lockable Pump and Battery Box mounted in Front of Bed |
|
| Tarp |
Tarp Mounting Brackets on Front of Bed |
Crank Style Roll Tarp |
| Top Rail |
2" x 2" Square Tubing |
|
| Model |
10SR-12XL |
| Pull Type |
Bumperpull |
| GVWR |
9990 lbs |
| GAWR (Ea. Axle) |
5200 lbs |
| Empty Weight |
3160 lbs |
| Cargo Capacity |
6660 lbs |
| Bed Length |
12' |
| Bed Width |
83" |
| A |
144 |
| B |
82 |
| C |
62 |
| Tongue Length |
41 |
