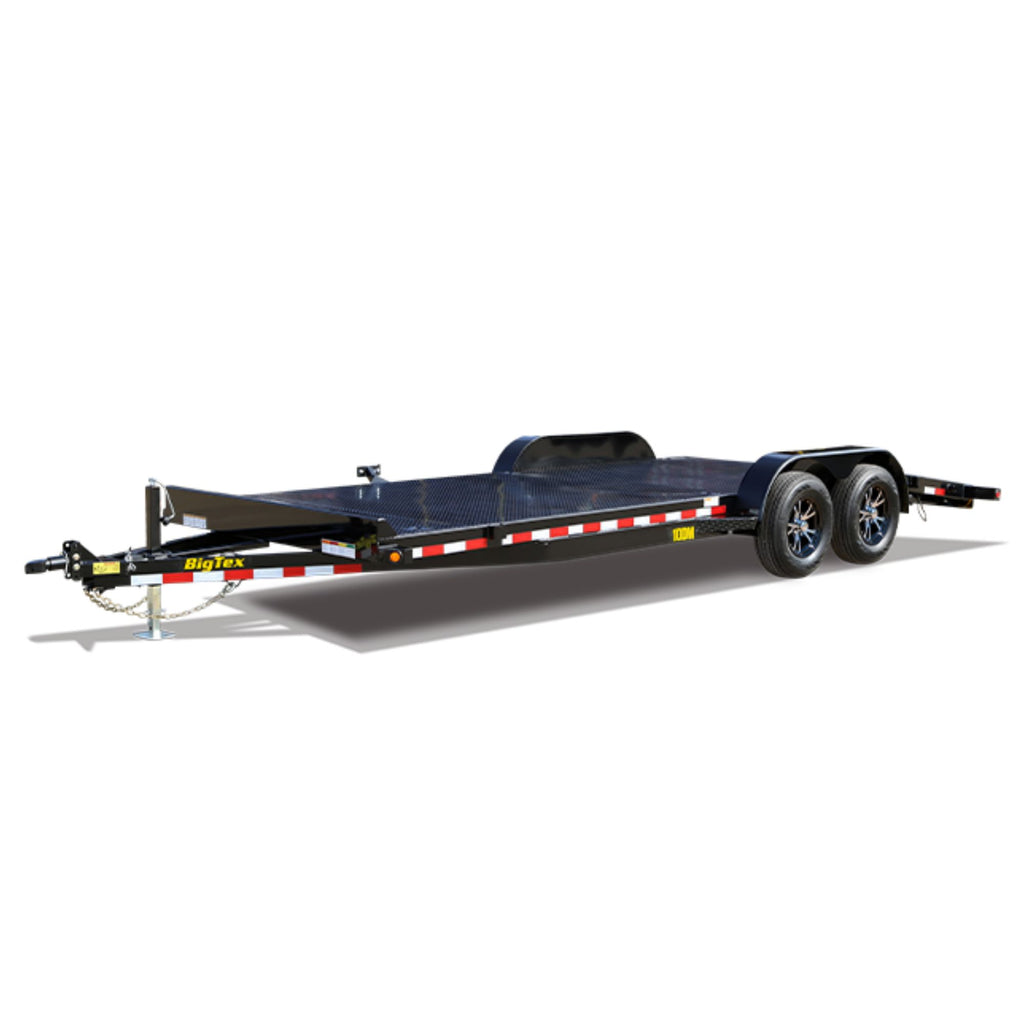

The 10DM Diamond Back Car Hauler is our top-of-the-line, premier car hauler but with a larger G.V.W.R. and more overall cargo capacity. Delivering the hauling capabilities you demand with the eye-catching looks you’ve always wanted, the 10DM the choice to make when you need to haul more. Chrome wheels, steel floor, and diamond-plate rear slide-out ramps make the 10DM both easy to use and easy to look at, and its box tubing frame adds strength and durability. To cut a long story short, the 10DM has it all.
|
Standard Feature |
Available Options |
| Axles |
2 - 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self-Adjusting Electric Brakes |
|
| Suspension |
Multi-Leaf Spring w/ Equalizer |
|
| Coupler |
2-5/16” Demco EZ Latch |
Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains |
1/4” Grd. 70 w/Safety Latch Hook (2 each) |
|
| Jack |
8,000# Top Wind, Set-Back Jack (Bolted on) |
|
| Frame |
5” x 2”x .188" Rectangular Tubing |
|
| Cross-Members |
3" Channel |
|
| Front Stop Rail |
3/16" Fabricated Front Stop Rail |
|
| Floor |
1/8" Diamond Plate |
|
| Ramps |
5' Rear Slide-In Channel Ramps with Stabilizers |
|
| Dovetail |
Integrated Dovetail |
|
| Stake Pockets |
|
Additional Stake Pockets (Each) |
| Trailer Plug |
7-Way RV |
|
| Lights |
L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
|
| Wiring |
Grommet-Mounted Lifetime L.E.D. Lighting |
|
| Tires |
ST205/75 R-15 Load Range C |
|
| Bolt Pattern |
5 Bolt |
|
| Wheels |
Aluminum Wheels |
|
| Spare Mount |
Side Spare Tire Mount |
|
| Spare Tire |
|
Spare Tire (ST225/75 R-15 LR-D, Aluminum w/ Black Trim) |
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| Tie-Downs |
(4) Recessed D-Rings |
Additional Recessed D-Rings in Floor |
| Storage |
|
- A-Frame Tongue Box (Aluminum Tread Brite)
- A-Frame Tongue Box (Steel)
|
| Front Rock Shield |
Front Rockshield (Aluminum Tread Brite) |
|
| MODEL |
10DM-18 |
| PULL TYPE |
Bumperpull |
| GVWR |
9990 lbs |
| GAWR (EA. AXLE) |
5200 lbs |
| EMPTY WEIGHT |
2480 lbs |
| CARGO CAPACITY |
7510 lbs |
| BED LENGTH |
18' |
| BED WIDTH |
83" |
| A |
218" |
| B |
132" |
| C |
86" |
| D |
39-1/4" |
| MODEL |
10DM-20 |
| PULL TYPE |
Bumperpull |
| GVWR |
9990 lbs |
| GAWR (EA. AXLE) |
5200 lbs |
| EMPTY WEIGHT |
2630 lbs |
| CARGO CAPACITY |
7360 lbs |
| BED LENGTH |
20' |
| BED WIDTH |
83" |
| A |
240" |
| B |
150" |
| C |
90" |
| D |
39-1/4" |
