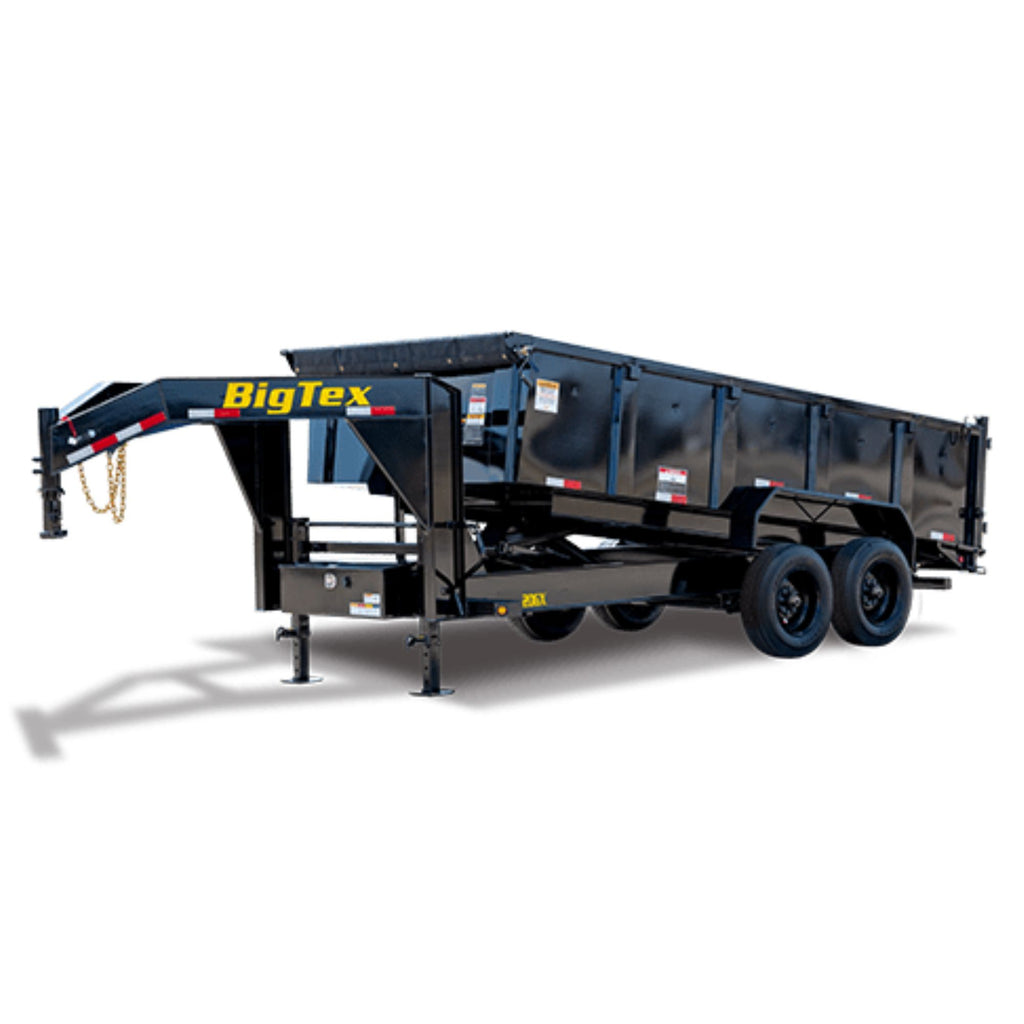

Need a trailer with muscle? Built to take on heavy-duty, hefty loads, the 20GX Mega Duty Tandem Axle Gooseneck Dump has the power you need. Tough enough for the most demanding industries and environments, this trailer is packing 10,000 lbs. Torsion Axles with Super Single Wheels for big hauls. And you won’t have to worry about space because the 20GX has a rugged dump box with high sides that add cubic capacity for larger loads. Best of all, its user-friendly low-profile design and optional slide-in ramp package make loading and unloading heavy equipment a quick and easy job for anyone. Next time the going gets tough, put some muscle into it.
|
Standard Feature |
Available Options |
| Axles |
2 - 10,000# cambered axles with Oil Bath and Valcrum Caps |
|
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles |
|
| Suspension |
Torsion Axles |
|
| Tongue |
10" I-Beam |
|
| Coupler |
Round Adjustable Pin 2-5/16” Gooseneck Coupler |
|
| Safety Chains |
3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
|
| Jack |
Dual 12,000# Drop-Leg Jack (Side Wind) |
Dual 2-Speed Landing Gear |
| Frame |
10" I-Beam |
|
| Cross-Members |
3" Channel on 16" Centers |
|
| Floor |
7 Gauge Smooth Steel |
|
| Fenders |
9" x 72" 14 Ga. Diamond Plate Double Broke |
|
| Ramps |
Not Included |
6.5’ Slide In Ramp Package |
| Stake Pockets |
Stake Pockets Along Both Sides (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
Recessed, Grommet-Mounted L.E.D. Lighting |
|
| Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
| Tires |
ST215/75 R-17.5 Load Range H Radial Tires |
|
| Bolt Pattern |
8-Lug |
|
| Wheels |
Black Mod Steel |
|
| Spare Mount |
Side Spare Tire Mount |
|
| Spare Tire |
Spare Tire & Wheel (ST215/75 R-17.5 LR-H) |
|
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
|
| Tie-Downs |
(4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control |
|
| Break-Away Kit |
Complete Breakaway System w/ Zip Breakaway Cable |
|
| Battery |
12V Deep Cycle |
|
| Charger |
5A 110V on Board Battery Charger |
|
| Deck On Neck |
Not Included |
Removable Deck on the Neck- Bolt On (8' W x 6' L) |
| Gate |
Rear Combo Gate (Barn Doors & Spreader Gate) |
|
| J-Hooks |
Along sides and rear for Cargo Control |
|
| Power |
Power Up/Power Down & Gravity Down Hydraulic Pump |
- 5 Watt Solar Charger
- Wireless Remote
|
| Ram |
Self-Contained Scissor |
|
| Sides |
36" Tall (10 Ga) with formed Channel Supports |
|
| Stabilizers |
Rear Stabilizer Stands |
|
| Steps |
Convenient Side-Step to Access Top Rail |
|
| Storage |
Lockable Pump and Battery Box mounted between front Jacks |
|
| Tarp |
Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders |
|
| Top Rail |
3"x 2" Rectangular Tubing |
|
| Steps & Handles |
Convenient Side-Step to Access Top Rail |
|
| Model |
20GX-16 |
| Pull Type |
Gooseneck |
| GVWR |
22000 lbs |
| GAWR (Ea. Axle) |
10000 lbs |
| Empty Weight |
6550 lbs |
| Cargo Capacity |
15450 lbs |
| Bed Length |
16' |
| Bed Width |
83" |
| A |
192" |
| B |
115-1/4" |
| C |
76-3/4" |
| Tongue Length |
92 |
