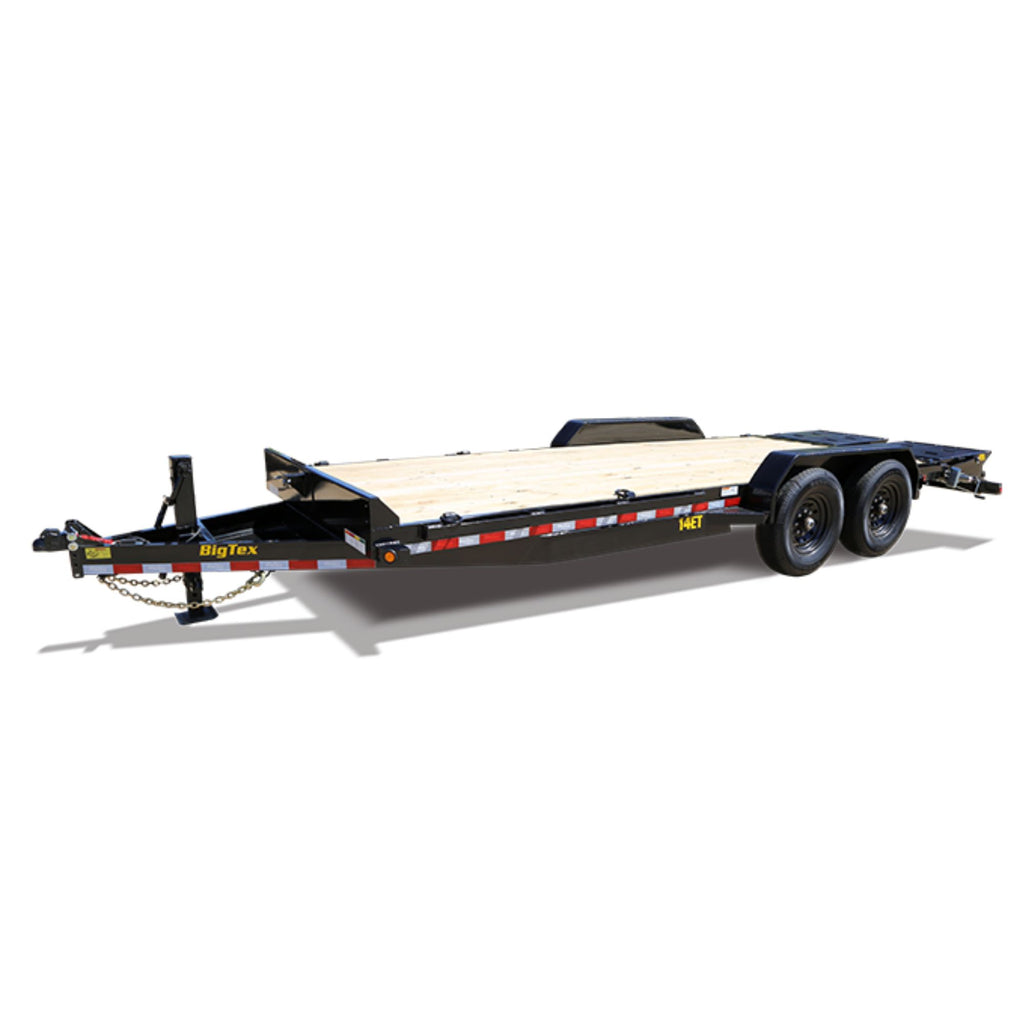

Engineered to get the job done like no other, the 14ET Heavy Duty Tandem Axle Equipment Trailer delivers the versatility, durability, and strength required to take on the difficult demands of the heavy-duty hauling and equipment transportation. Ready to go for the longest and hardest hauls, it’s the ideal heavy-duty trailer solution for construction workers, professional landscapers, farmers, and more.
|
Standard Feature |
Available Options |
| Axles |
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles |
|
| Suspension |
Multi-Leaf Slipper Spring w/ Equalizer |
|
| Coupler |
2-5/16" Ball, Adjustable Demco EZ Latch Coupler 2-5/16" Round Gooseneck Coupler on Gooseneck models |
Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains |
3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
|
| Jack |
12,000# Drop-Leg Jack (Side Wind) Dual Jacks on Gooseneck Model |
|
| Frame |
6" Channel |
|
| Cross-Members |
3" Channel on 16" Centers |
|
| Front Stop Rail |
3/16" Fabricated Front Stop Rail (Bumper Pull Only) |
|
| Floor |
APEX Fortified Lumber |
Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot) |
| Fenders |
9" x 72" 14 Ga. Diamond Plate Double Broke w/ Back |
|
| Ramps |
4’ Tall, 16" Knee Ramps (Spring Assisted) |
44" Wide Mega Ramps (Dovetail only) 5' Rear Slide-In Ramps (Straight Deck models only) Super-Wide Ramps (60" Tall x XX" Wide) |
| Dovetail |
3' Cleated Dovetail |
Blackwood Pro Dovetail (Standard with Super-Wide Ramps) |
| Stake Pockets |
Stake Pockets Along Both Sides (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
Recessed, Grommet-Mounted L.E.D. Lighting |
|
| Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
| Tires |
ST235/80 R-16 Load Range E Radial Tires |
Tire Upgrade (ST235/80 R-16 LR-G) |
| Bolt Pattern |
8-Lug |
|
| Spare Mount |
Front Spare Tire Mount |
|
| Spare Tire |
Not Included |
Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G) |
| Paint Color |
Black |
Red
Grey
White
Desert Tan
Jet Blue
Slime Green
Implement Green
Equipment Orange
Medium Yellow |
| Rubrail |
Rub Rail Along Both Sides |
|
| Tie-Downs |
(6) 5/8" D-Rings |
Extra 5/8" D-Rings Recessed D-Ring in Floor (Steel Floor Only) |
| Break-Away Kit |
Complete Breakaway System w/ Zip Breakaway Cable |
|
| Storage |
Tongue Tool Tray (Bumper Pull Only) Lockable Toolbox Between Risers on Gooseneck Model |
|
| Model |
14ET-20KR |
14ET-18KR |
| Pull Type |
Bumperpull |
Bumperpull |
| GVWR |
14000 lbs |
14000 lbs |
| GAWR (Ea. Axle) |
7000 lbs |
7000 lbs |
| Empty Weight |
2940 lbs |
2740 lbs |
| Cargo Capacity |
11060 lbs |
11260 lbs |
| Bed Length |
20' |
18' |
| Bed Width |
83" |
83" |
