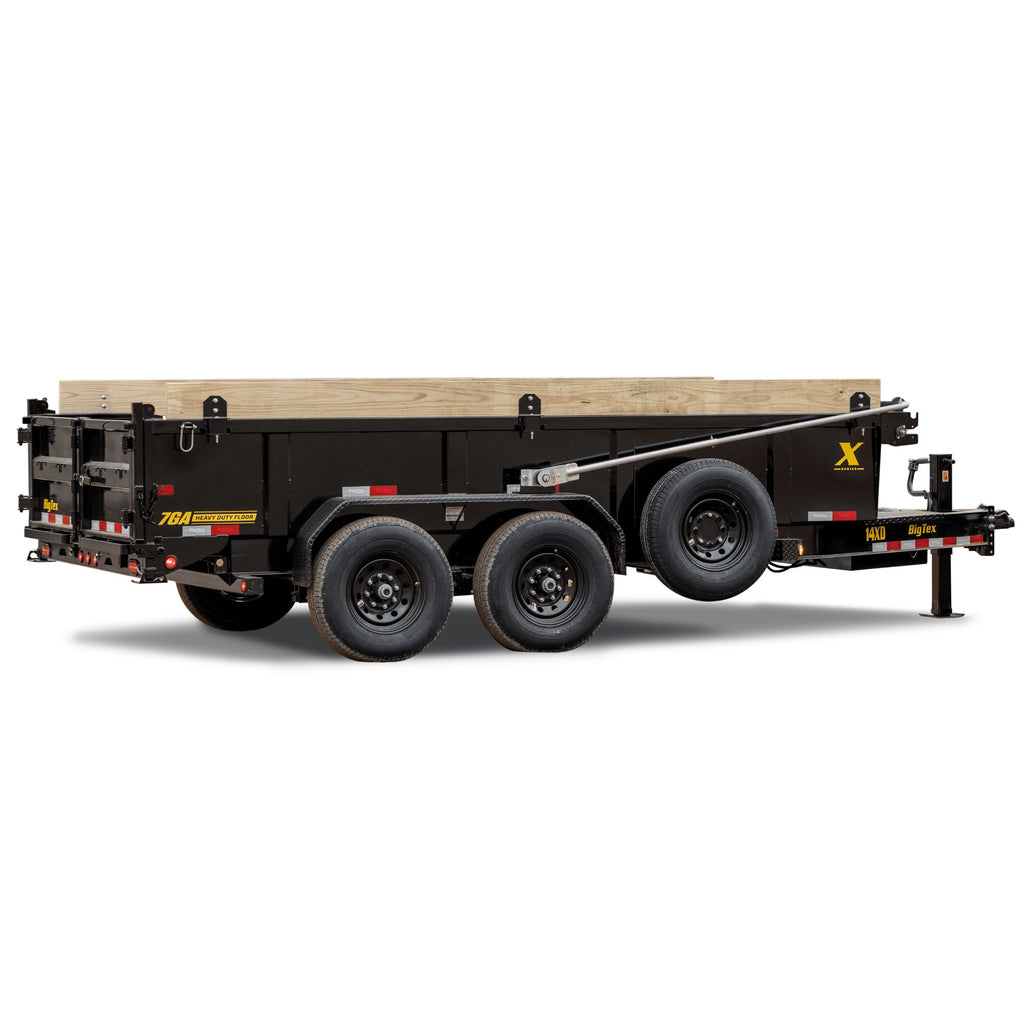

Part of the all-new X-Series, the 14XD Heavy Duty Low Profile Dump Trailer stands as the pinnacle of professional-grade hauling. Engineered with a seamless 8" I-beam frame and tongue, this dump trailer delivers unmatched strength for the heaviest loads, while a Mega-Sized Toolbox gives you space for all your essential gear. Topped with practical features like a Spring-Loaded Swing Arm Tarp, robust board brackets, and an advanced Scissor-Lift Hydraulic System with power-up, power-down, and gravity-down options, the 14XD will help you tackle the toughest jobs with confidence and efficiency.
|
Standard Feature |
Available Options |
| Axles |
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self-Adjusting Electric Brakes on All Hubs |
|
| Suspension |
Multi-Leaf Spring w/ Equalizer |
|
| Tongue |
8" I-Beam (10#), Integral with Frame |
|
| Coupler |
Adjustable 2-5/16” 18,000# Demco EZ Latch |
Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains |
3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
|
| Jack |
12,000# Drop-Leg Jack (Side Wind) |
12,000# Elec/Hyd. Jack BY Stillwell™ |
| Frame |
8" I-Beam (10#) |
|
| Cross-Members |
3" Channel on 16" Centers |
|
| Floor |
7 Gauge Smooth Steel |
|
| Fenders |
9” x 72” 14 Ga. Diamond Plate Double Square Broke |
|
| Ramps |
6' Slide in Ramps with integrated Ramp Door |
|
| Stake Pockets |
Stake Pockets Along Both Sides (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
|
| Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
| Tires |
ST235/80 R-16 Load Range G, Oracle |
|
| Bolt Pattern |
8-Lug |
|
| Wheels |
Black Mod Steel |
|
| Spare Mount |
Side Spare Tire Mount |
|
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
|
| Tie-Downs |
(4) 5/8" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control |
|
| Break-Away Kit |
Complete Breakaway System w/ Zip Breakaway Cable |
|
| Battery |
12V Deep Cycle |
|
| Charger |
5A 110V on Board Battery Charger |
|
| Gate |
Rear Combo Gate (Barn Doors & Spreader Gate) |
|
| J-Hooks |
Along sides and rear for Cargo Control |
|
| Power |
Power Up/Power Down & Gravity Down Hydraulic Pump |
|
| Ram |
Self-Contained Scissor |
|
| Sides |
24" Tall (10 Ga) with formed Channel Supports |
|
| Stabilizers |
Rear Stabilizer Stands |
|
| Storage |
Full Tongue Tool Box with Locking Lid |
|
| Tarp |
Spring Loaded Swing Arm Tarp |
|
| Top Rail |
3"x 2" Rectangular Tubing |
|
| Model |
14XD-14 |
| Pull Type |
Bumperpull |
| GVWR |
15400 lbs |
| GAWR (Ea. Axle) |
7000 lbs |
| Empty Weight |
4180 lbs |
| Cargo Capacity |
11220 lbs |
| Bed Length |
14' |
| Bed Width |
83" |
