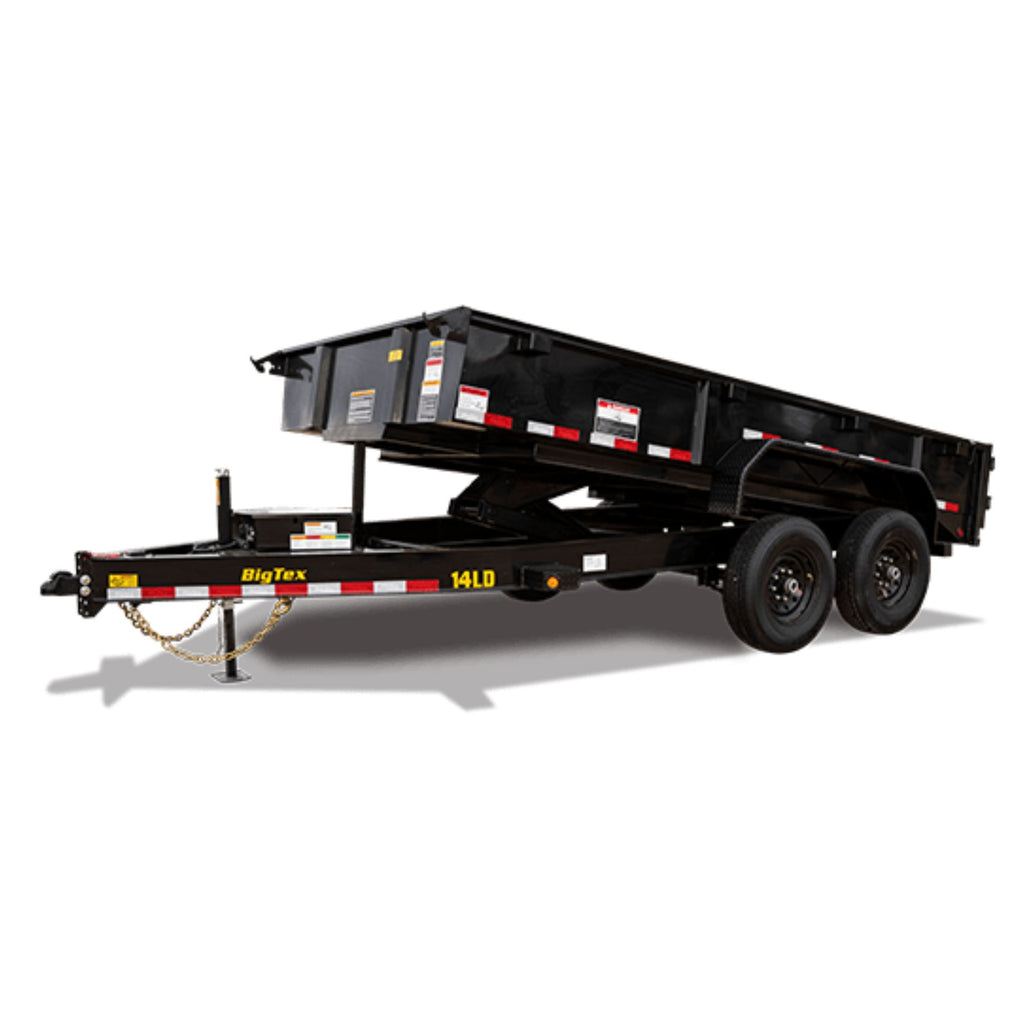

Built to get the job done and not to show off, the 14LD Low Profile Dump is a no frills trailer—meaning you don’t have to pay for features and optional equipment that you may not need for the work you do. Engineered to perform in the toughest environments, the 14LD is a durable trailer with the strength and versatility to transport and dump a huge variety of loads. And its low profile design makes it easy to load and unload materials or equipment. Built like you, this hardworking dump trailer gets the job done without breaking the bank.
|
Standard Feature |
Available Options |
| Axles |
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self-Adjusting Electric Brakes on Both Axles |
|
| Suspension |
Multi-Leaf Slipper Spring w/ Equalizer |
|
| Tongue |
8" Seamless I-Beam Integrated w/ Frame (10#) |
|
| Coupler |
2-5/16" Ball, Adjustable Demco EZ Latch Coupler |
Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains |
3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
|
| Jack |
8,000# Top Wind Drop Leg |
|
| Frame |
8" Seamless I-Beam (10#) |
|
| Cross-Members |
3" Channel |
|
| Floor |
1/8" Smooth Steel |
|
| Fenders |
9" x 72" 14 Ga. Diamond Plate Double Broke |
|
| Ramps |
Rear Ramp Pockets (Ramps not Included) |
6.5’ Slide In Ramp Package |
| Stake Pockets |
Stake Pockets Along Both Sides (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
Recessed, Grommet-Mounted L.E.D. Lighting |
|
| Wiring |
Sealed, Modular Cold-Weather Wiring Harness |
|
| Tires |
ST235/80 R-16 Load Range E Radial Tires |
|
| Bolt Pattern |
8-Lug |
|
| Wheels |
Black Mod Steel |
|
| Spare Mount |
Side Spare Tire Mount |
|
| Spare Tire |
Not Included |
Spare Tire & Wheel (ST235/80 R-16 LR-E) |
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
|
| Tie-Downs |
(4) 1/2" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control |
|
| Break-Away Kit |
Complete Breakaway System w/ Zip Breakaway Cable |
|
| Battery |
12V Deep Cycle |
|
| Charger |
5A 110V on Board Battery Charger |
|
| Gate |
Double Rear Doors |
|
| J-Hooks |
Along sides and rear for Cargo Control |
|
| Power |
Power Up/Power Down & Gravity Down Hydraulic Pump |
- 5 Watt Solar Charger
- Wireless Remote
|
| Ram |
Self-Contained Scissor |
|
| Sides |
20" Tall (12 Ga) with formed Channel Supports |
|
| Stabilizers |
Not Included |
Rear Stabilizer Stands- Set of (2) |
| Steps |
Convenient Side-Step to Access Top Rail |
|
| Storage |
Lockable Pump and Battery Box mounted in Front of Bed |
|
| Tarp |
Tarp Mounting Brackets on Front of Bed |
Crank Style Roll Tarp |
| Top Rail |
2"x2" Rectangular Tubing |
|
| Steps & Handles |
Convenient Side-Step to Access Top Rail |
|
| Model |
14LD-14 |
| Pull Type |
Bumperpull |
| GVWR |
14000 lbs |
| GAWR (Ea. Axle) |
7000 lbs |
| Empty Weight |
3555 lbs |
| Cargo Capacity |
10445 lbs |
| Bed Length |
14' |
| Bed Width |
83" |
| A |
168" |
| B |
100" |
| C |
68" |
| Tongue Length |
51-1/8" |
