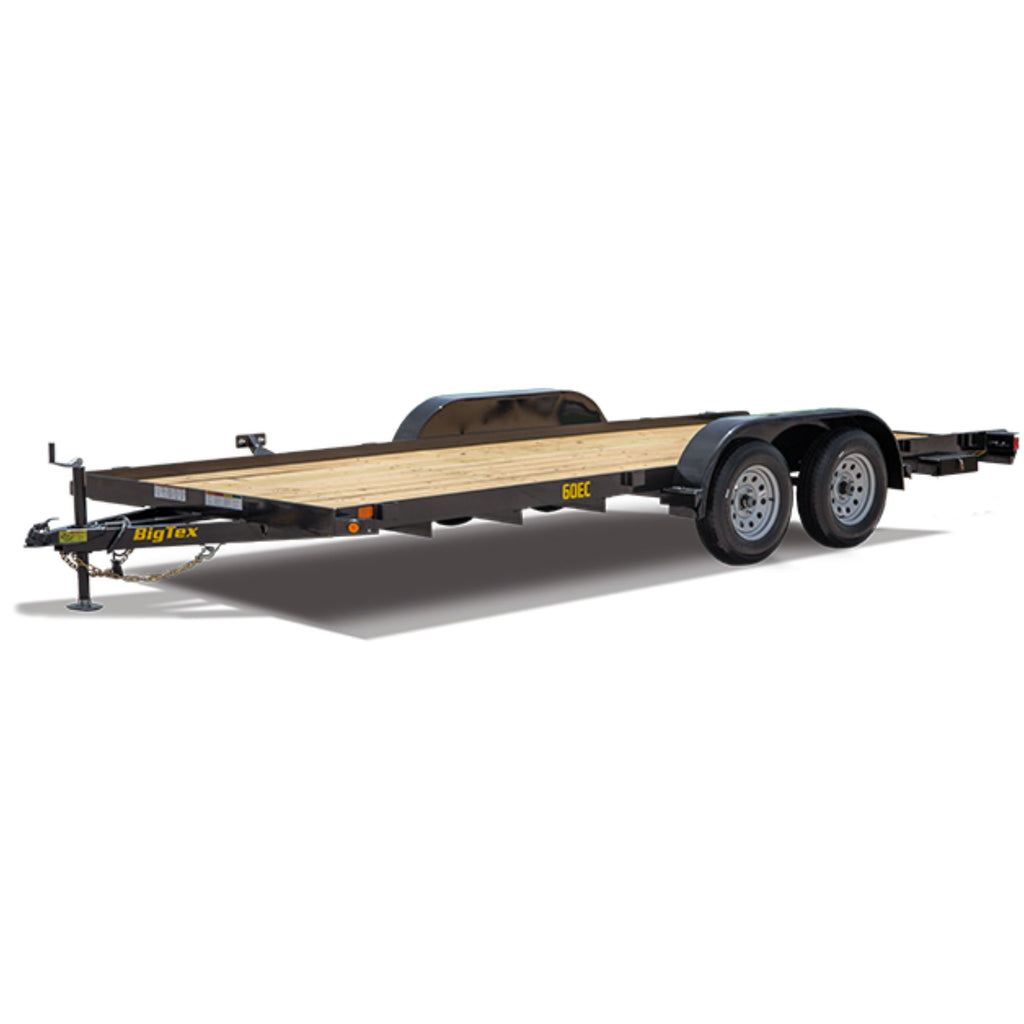

Moving a car doesn’t have to be difficult as it sounds—or as expensive. That’s why we offer the cost-effective 60EC Economy Tandem Axle Car Hauler, a trailer that’s built to reliably transport your car from here to there without breaking the bank. It’s a simple, durable economy-style car hauler designed to transport cars, small tractors, ATVs, and side-by-sides, but if you’re looking for a little flash, you can upgrade to chrome wheels and higher quality materials. Whether you want to just get the job done or show off your pride and joy, the choice is yours.
|
Standard Feature |
Available Options |
| Axles |
2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs |
|
| Brakes |
Forward Self Adjusting Electric Brake on Front Axle |
Electric Brakes on 2nd Axle |
| Suspension |
Multi-Leaf Spring w/ Equalizer |
|
| Coupler |
2" A-Frame |
2-5/16” Stamped Coupler |
| Safety Chains |
1/4” Grd. 70 w/Safety Latch Hook (2 each) |
|
| Jack |
2,000# Top Wind, Removable Sand Foot |
|
| Frame |
5” x 3” x 5/16" Angle (1/4" on 16') |
|
| Cross-Members |
3” x 2” x 3/16” Angle |
|
| Floor |
APEX Fortified Lumber |
|
| Ramps |
|
4' Slide-In Angle Ramps |
| Dovetail |
Straight Deck, No Dovetail |
|
| Stake Pockets |
Stake Pockets Along Both Sides (Quantity Varies by Length) |
|
| Trailer Plug |
7-Way RV |
|
| Lights |
L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
|
| Wiring |
Grommet-Mounted Lifetime L.E.D. Lighting |
|
| Tires |
ST205/75 R-15 Load Range C |
|
| Bolt Pattern |
5 on 5 |
|
| Spare Mount |
|
Side Spare Tire Mount |
| Spare Tire |
|
Spare Tire (ST205/75R-15 LR-C) |
| Paint Type |
Professional Finish w/ Primer Standard |
|
| Paint Color |
Black |
- Red
- Grey
- White
- Desert Tan
- Jet Blue
- Slime Green
- Implement Green
- Equipment Orange
- Medium Yellow
|
| MODEL |
60EC-14 |
| PULL TYPE |
Bumperpull |
| GVWR |
6000 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
1620 lbs |
| CARGO CAPACITY |
4380 lbs |
| BED LENGTH |
14' |
| BED WIDTH |
83" |
| A |
169-1/2" |
| B |
103" |
| C |
66-1/2" |
| MODEL |
60EC-16 |
| PULL TYPE |
Bumperpull |
| GVWR |
6000 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
1710 lbs |
| CARGO CAPACITY |
4290 lbs |
| BED LENGTH |
16' |
| BED WIDTH |
83" |
| A |
193-1/2" |
| B |
115" |
| C |
78-1/2" |
| MODEL |
60EC-18 |
| PULL TYPE |
Bumperpull |
| GVWR |
6000 lbs |
| GAWR (EA. AXLE) |
3500 lbs |
| EMPTY WEIGHT |
1800 lbs |
| CARGO CAPACITY |
4200 lbs |
| BED LENGTH |
18' |
| BED WIDTH |
83" |
| A |
217-1/2" |
| B |
127" |
| C |
90-1/2 |
